120521-1

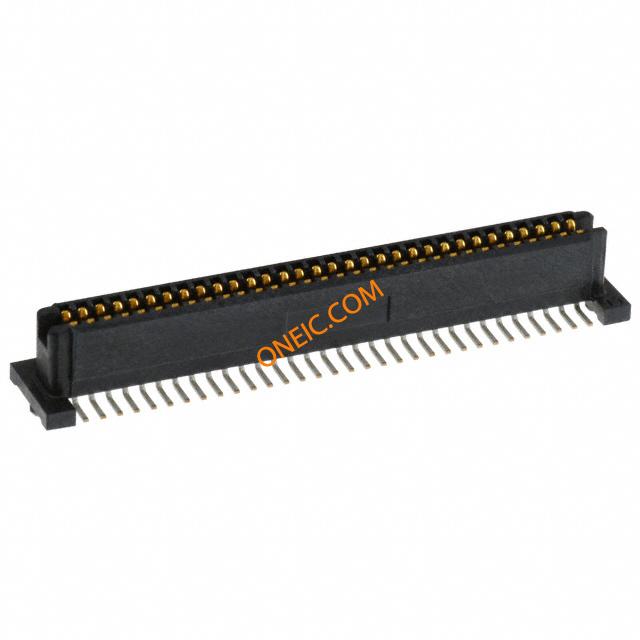

Conn IEEE 1386 RCP 64 POS 1mm Solder ST SMD T/R
廠商型號:
120521-1
芯天下內部編號:
35-120521-1
生產廠商:
te connectivity / amp
描述:
Conn IEEE 1386 RCP 64 POS 1mm Solder ST SMD T/R
產品類別:
Interconnect|Connector Headers and PCB Receptacles
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | IEEE 1386 |
| Pitch | 1 mm |
| Number of Rows | 2 |
| Number of Contacts | 64 |
| Gender | RCP |
| Contact Plating | Gold Over Nickel |
| Termination Method | Solder |
| Standard Package | Tape & Reel |
| PCB Mounting Orientation | Vertical |
| Contact - Rated Current | 0.8 |
| Underplate Material Thickness | 1.27 |
| Mating Retention | Without |
| Width (Z-Axis) | 6.04 |
| Operating Voltage | 250.0 |
| Termination Method to PC Board | Surface Mount |
| PCB Mount Alignment Type | Locating Posts |
| Centerline | 1.0 |
| Number of Positions | 64 |
| PCB Mount Retention Type | Locating Posts |
| PCB Mount Retention | With |
| Contact Plating Mating Area Material | Gold |
| PCB Mount Alignment | With |
| Contact Base Material | Phosphor Bronze |
| Profile Height (Y-Axis) | 5.37 |
| Number of Columns | 32.0 |
| UL File Number | E28476 |
| Connector Type | Connector Assembly |
| Tail Length | 2.05 |
| Tail Orientation | In-line |
| Product Type | Connector |
| Tail Plating Material | Tin-Lead |
| Length (X-Axis) | 34.22 |
| CSA File Number | LR7189 |
| Contact Plating Mating Area Thickness | 0.762 |
| Product Line | 1mm FH |
| Operating Voltage Reference | AC/DC |
| Features | Board Guide |
| Mounting Type | Surface Mount |
| Contact Finish | Gold |
| Packaging | Tape & Reel (TR) |
| Height Above Board | 0.211" (5.35mm) |
| Mated Stacking Heights | 8mm, 9mm, 10mm |
| Contact Finish Thickness | 30μin (0.76μm) |
| rohs | Lead free / RoHS non-compliant |
| Other Names | A101124DKR |
| Factory Pack Quantity | 650 |
| Product Category | Board to Board & Mezzanine Connectors |
| Current Rating | 500 mA |
| Housing Material | Thermoplastic |
| Voltage Rating | 100 V |
| Series | Free Height |
| Termination Style | SMD |
| Number of Positions / Contacts | 64 |
| RoHS | In Transition |
| Contact Material | Phosphor Bronze |
| Operating Temp Range | -40C to 85C |
| Number of Ports | 1 Port |
| Current Rating (Max) | 0.5/Contact A |
| Mounting Style | Surface Mount |
| Body Orientation | Straight |
| Product Length (mm) | 35.9 mm |
| Number of Terminals | 64 |
| Voltage Rating Max | 100VAC |
| Pitch (mm) | 1 mm |
| DELETED | Not Compliant |
| Number of Contact Rows | 2 |
| Housing Color | Black |
| Product Depth (mm) | 6.05 mm |
| Product Height (mm) | 6.13 mm |
| 連接器類型 | Receptacle, Outer Shroud Contacts |
| 間距 | 0.039" (1.00mm) |
| 排數 | 2 |
| 位置數 | 64 |
| 特性 | Board Guide |
| 觸頭鍍層 | Gold |
| 觸頭鍍層厚度 | 30μin (0.76μm) |
| 板上高度 | 0.211" (5.35mm) |
| 裝配類型 | Surface Mount |
| 接合堆疊高度 | 8mm, 9mm, 10mm |
| 系列 | Free Height (FH) IEEE 1386, PMC, AMP |
| 端子構成 | 單梁 |
| Centerline (Pitch) | 1?mm?[?.039?in?] |
| 堆疊高度?(mm) | 8, 9, 10 |
| 端子類型 | 插針 |
| スズと鉛の比率 | 93 / 7 |
| PCB 安裝固定類型 | 無 |
| 封裝方法 | 載帶盤 |
| スタッカブル | 是 |
| 底板材料厚度 | 1.27?μm?[?50?μin?] |
| 行數 | 2 |
| はんだテールの向き | 直插式 |
| PC 板端接方法 | 表面貼裝 |
| 端子接觸部電鍍材料 | 金 |
| Contact Current Rating (Max)?(A) | 1 |
| UL 易燃性等級 | UL 94V-0 |
| はんだテール端子めっき材質の仕上げ | 啞光 |
| 殼體顏色 | 黑色 |
| ハウジング導入口のスタイル | 頂部 |
| 接合對準 | 不帶 |
| 端子端接區域電鍍材料 | 錫鉛 |
| 差動信號 | 是 |
| ボス | 帶有 |
| Connector System | 板對板 |
| 端子接觸部電鍍厚度 | .76?μm?[?29.9212?μin?] |
| 接合固定 | 不帶 |
| 焊尾端子電鍍厚度 | 3.81?μm?[?150?μin?] |
| 端子布局 | 同軸 |
| 工組溫度范圍 | -55 – 110?°C?[?-67 – 230?°F?] |
| 產品類型 | 連接器 |
| 獲得 CSA 認證 | 是 |
| 接合對準類型 | None |
| 電壓?(VAC) | 250 |
| PCB 安裝固定 | 不帶 |
| UL 等級 | 已獲認證 |
| 端子電鍍材料 | Ni, 錫鉛 |
| 下地の材料 | 鎳 |
| シリーズ | 1 mm FH |
| PCB 安裝方向 | 垂直 |
| 寬度 | 6.04?mm?[?.238?in?] |
| 外殼材料 | 熱塑性 |
| 焊尾端子電鍍材料 | 錫鉛 |
| 端子電鍍厚度 | .127–.254, 2 |
| 端子傳導（典型值） | 信號（數據） |
| 業界標準 | IEEE 1386 夾層連接器 |
| 機構/標準 | CSA, UL |
| 行間距?(mm) | 1 |
| 堆疊高度?(in) | .394 |
| UL 文件號 | E28476 |
| PCB マウント アラインメント | 帶有 |
| 端子端接區域電鍍厚度 | 3.81?μm?[?150?μin?] |
| カバーの著脫 | 不帶 |
| 封裝數量 | 650 |
| 基板対基板接続による構成 | 夾層 |
| PCB マウント アラインメント タイプ | 定位柱, 定位柱 |
| 連接器種類 | 母端 |
| CSA 文件號 | LR7189 |
| 端子基材 | 磷青銅 |
| 列數 | 32 |
| 連接器和端子端接到 | 印刷電路板 |
| 尾部長度 | 2.05?mm?[?.081?in?] |
