14910A0BHSX10252KA
Potentiometers 149 1 0 A 0 BH S X10 BO 2K5 10% A e3
廠商型號:
14910A0BHSX10252KA
芯天下內部編號:
5-14910A0BHSX10252KA
生產廠商:
Vishay / Sfernice
描述:
Potentiometers 149 1 0 A 0 BH S X10 BO 2K5 10% A e3
產品類別:
Passive Components|Potentiometers|Rotary Potentiometers

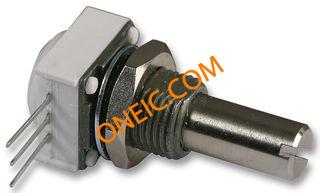

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Unit Pack | 25 |
| MOQ | 25 |
| Track Resistance | :2.5kohm |
| Track Taper | :Linear |
| Shaft Diameter | :3.17mm |
| Shaft Length - Metric | :19.05mm |
| Resistance Tolerance | :± 10% |
| Voltage Rating | :28V |
| Power Rating | :1W |
| No. of Gangs | :1 |
| Adjustment Type | :Side |
| Mounting Type | :PCB Through Hole |
| Operating Temperature Max | :150°C |
| Operating Temperature Min | :-40°C |
| Operating Temperature Range | :-40°C to +150°C |
| Resistance | :2.5kohm |
| Resistor Element Material | :Cermet |
| Series | :149 |
| Temperature Coefficient | :± 150ppm/°C |
| Termination Type | :Radial Leaded |
| Voltage Rating V DC | :28V |
| Weight (kg) | 0.009 |
| Tariff No. | 85334010 |
