51AAD-B28-A15L
Res Cermet POT 10K Ohm 10% 1W 1(Elec)/1(Mech)Turn 6.35mm (31.12 X 12.5 X 13.25mm) Pin Panel Mount/Through Hole
廠商型號:
51AAD-B28-A15L
芯天下內部編號:
18-51AAD-B28-A15L
生產廠商:
bourns
描述:
Res Cermet POT 10K Ohm 10% 1W 1(Elec)/1(Mech)Turn 6.35mm (31.12 X 12.5 X 13.25mm) Pin Panel Mount/Through Hole
產品類別:
Resistor|Resistor Trimmers, Potentiometer and Rheostat

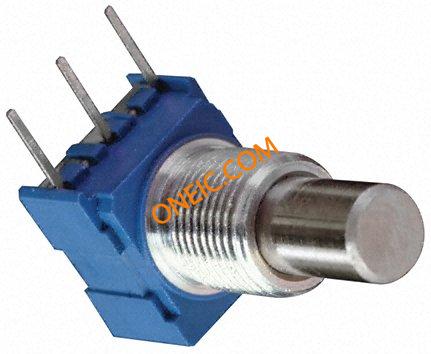

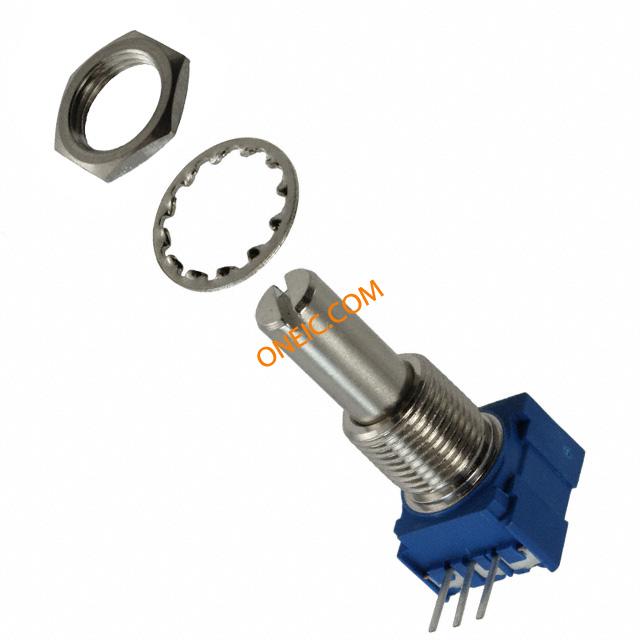

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Potentiometer |
| Resistance Value | 10 KOhm |
| Tolerance | 10 % |
| Number of Turns | 1(Elec)|1(Mech) Turns |
| Power Rating | 1 W |
| Mounting | Panel Mount/Through Hole |
| Technology | Cermet |
| Operating Temperature | 1 to 125 °C |
| Shaft Diameter | 6.35 mm |
| Standard Package | Bulk |
| Product Category | Potentiometers |
| RoHS | RoHS Compliant By Exemption |
| Product | Musical Syst Potentiometer |
| Mounting Style | Panel |
| Taper | Linear |
| Resistance | 10 kOhms |
| Element Type | Cermet |
| Shaft Type | Slotted |
| Termination Style | Pin |
| Shaft Length | 7/8 in |
| Factory Pack Quantity | 10 |
| Resistance Value | 10K |
| EU RoHS | Compliant |
| Product Depth | 12.5 |
| Temperature Coefficient | ±150 |
| Product Length | 31.12 |
| Product Height | 13.25 |
| Power Rating | 1 |
| Shaft Diameter | 6.35 |
| Number of Turns | 1(Elec)|1(Mech) |
| Resistance (Ohms) | 10k |
| Actuator Length | 0.875" (22.23mm) |
| Mounting Type | Through Hole |
| Temperature Coefficient | ±150ppm/°C |
| Size - Body | Rectangular - 0.521" x 0.492" Face x 0.350" L (13.25mm x 12.50mm x 8.89mm) |
| Packaging | Bulk |
| Resistive Material | Cermet |
| Power (Watts) | 1W |
| Actuator Diameter | 0.250" (6.35mm) |
| Adjustment Type | Side Adjustment |
| Actuator Type | Slotted Shaft |
| Rotation | 290° |
| Other Names | 51AADB28A15L |
| rohs | Lead free / RoHS Compliant |
| Depth | 12.5mm |
| Dimensions | 31.12 x 12.5 x 13.25mm |
| Height | 13.25mm |
| Length | 31.12mm |
| Maximum Operating Temperature | +125°C |
| Maximum Resistance | 10kΩ |
| Minimum Operating Temperature | +1°C |
| Mounting Hole Diameter | 3/8in |
| Potentiometer Type | Linear |
| Operating Temp Range | 1C to 125C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Tolerance (+ or -) | 10% |
| Military Standard | Not Required |
| Product Length (mm) | 31.12 mm |
| Product Depth (mm) | 12.5 mm |
| Product Height (mm) | 13.25 mm |
| Shaft Diameter (mm) | 6.35 mm |
| Product Diameter (mm) | Not Required mm |
| Track Resistance | :10kohm |
| Track Taper | :Linear |
| No. of Turns | :1 |
| Shaft Length - Metric | :22.2mm |
| Resistance Tolerance | :± 10% |
| Voltage Rating | :350V |
| Potentiometer Mounting | :Panel |
| No. of Gangs | :1 |
| SVHC | :No SVHC (20-Jun-2013) |
| Bush Diameter | :10mm |
| Bush Thread Length | :10mm |
| Contact Resistance Variation + | :4% |
| Electrical Angular Rotation Tolerance + | :5° |
| Electrical Angular Rotation Tolerance - | :5° |
| External Depth | :8.9mm |
| External Length / Height | :13.25mm |
| External Width | :12.5mm |
| Full Power Rating Temperature | :70°C |
| Linearity, + | :5% |
| Mechanical Angular Rotation Tolerance + | :5° |
| Mechanical Angular Rotation Tolerance - | :5° |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :1°C |
| Operating Temperature Range | :+1°C to +125°C |
| Proof Voltage | :1000VAC |
| Resistor Element Material | :Cermet |
| Rotation Electrical Angle | :270° |
| Rotation Mechanical Angle | :295° |
| Series | :51 |
| Temperature Coeff. + | :150ppm/°C |
| Tolerance + | :10% |
| Weight (kg) | 0.014 |
| Tariff No. | 85334010 |
