86107CY
Cable 26AWG 7C 6.10 OD XGF Supra shield
廠商型號:
86107CY
芯天下內部編號:
29-86107CY
生產廠商:
Alpha Wire
描述:
Cable 26AWG 7C 6.10 OD XGF Supra shield
產品類別:
Cables & Wires|Electrical Power & Industrial Cable|Multicore Industrial Cable
客戶編號:
規格書:
查看PDF

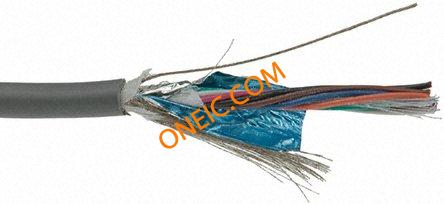

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| American Wire Gauge | 26 |
| Cable Shape | Multicore |
| Characteristic Impedance | 62 Ω |
| Conductor Material | Tinned Copper |
| Conductor Resistance | 134.51444 Ω/km |
| Core Strands | 7/34 |
| Cross Sectional Area | 0.14 mm |
| Insulation Material | PVC |
| Maximum Operating Temperature | +105°C |
| Minimum Bend Radius | 8 x D |
| Minimum Operating Temperature | +5°C |
| Number of Cores | 7 |
| Number of Strands | 7 |
| Outer Diameter | 6.02mm |
| Screen Type | Aluminium/PET Foil |
| Screened/Unscreened | Screened |
| Sheath Colour | Grey |
| Sheath Material | PVC |
| Size of Strands | 34 AWG |
| Voltage Rating | 300 V |
| No. of Conductors | :7 |
| Conductor Size AWG | :26AWG |
| No. of Max Strands x Strand Size | :7 x 0.16mm |
| Conductor Area CSA | :0.14mm2 |
| Jacket Colour | :Grey |
| Jacket Material | :PVC (Polyvinyl Chloride) |
| External Diameter | :5.8mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Bend Flexing Radius Min | :8 X Cable Diameter |
| Cable Type | :Foil + Spiral Shield |
| Conductor Make-up | :7 / 0.16mm |
| External Length / Height | :1m |
| No. of Cores | :7 |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :5°C |
| Primary Insulation Thickness | :0.25mm |
| Secondary Insulation Colour | :Grey |
| Secondary Insulation Material | :PVC |
| Secondary Insulation Thickness | :1mm |
| Voltage Rating V AC | :300V |
| Wire Size | :26AWG |
| Weight (kg) | 0.057 |
| Tariff No. | 85444995 |
