A22EL-M-24A-11
Pushbutton Switches SPST-NO+NC 24V ILLUM Push-lock turn-reset
廠商型號:
A22EL-M-24A-11
芯天下內部編號:
232-A22EL-M-24A-11
生產廠商:
Omron Industrial
描述:
Pushbutton Switches SPST-NO+NC 24V ILLUM Push-lock turn-reset
產品類別:
Switches|Pushbutton Switches|A22

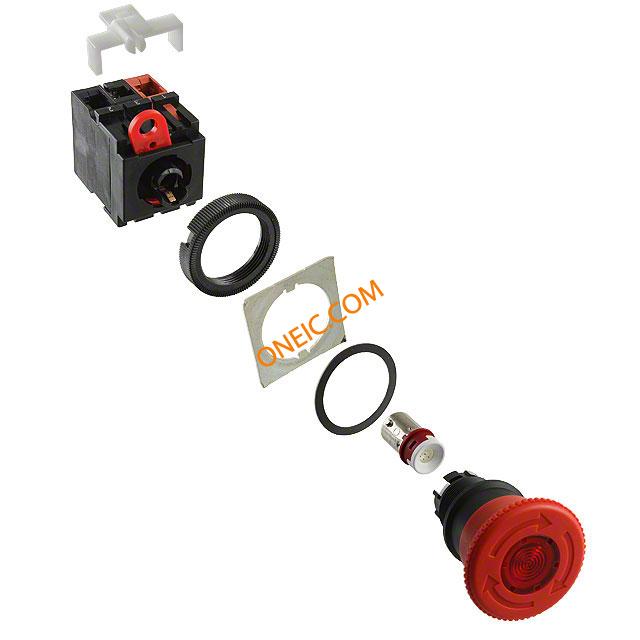

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Industry Aliases | A22EL-M-24A-11 |
| Subcategory | Switch Misc |
| Lead Time | 56 Days |
| Packaging | Bulk |
| Switch Function | On-Off, Off-On |
| Current Rating | 10A (AC/DC) |
| Panel Cutout Dimensions | Circular - 22.30mm Dia |
| Mounting Type | Panel Mount, Front |
| Voltage Rating - AC | 110V |
| Type | Emergency Stop, Illuminated |
| Electrical Life | 300,000 Cycles |
| Termination Style | Screw Terminal |
| Color - Actuator/Cap | Red |
| Operating Temperature | -20°C ~ 55°C |
| Illumination Type, Color | LED, Red |
| Actuator Type | Round, Button, Mushroom |
| Standard Package | 1 |
| Voltage Rating - DC | 24V |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 300,000 Cycles |
| Illumination Voltage (Nominal) | 24 VAC/DC |
| Circuit | DPST (1-NO, 1-NC) |
| Features | Push-Lock, Turn-Reset |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 1 |
| Product | Safety Switches |
| Product Category | Pushbutton Switches |
| IP Rating | IP 65 |
| Series | A22E |
| Contact Form | SPST |
| Voltage Rating AC | 440 V |
| Voltage Rating DC | 380 V |
| Mounting Style | Panel |
| Illumination Color | Red |
| Illumination | LED |
| Actuator | Round |
| Part # Aliases | 359887 |
| RoHS | RoHS Compliant |
| AC contacts rating (at resistance load) | 3 A / 230 VAC |
| Switches features | return by rotating |
| Mounting hole diameter | ?22.5mm |
| Multiplicity | 1 |
| Contacts configuration | NC + NO |
| Switch standard | 22mm |
| Face dimensions | ?40mm |
| Gross weight | 0.03 kg |
| Stable positions number | 1-position |
| Operating temperature | -20...55°C |
| Button shape | mushroom |
| Button marking | arrows |
| Actuator colour | red |
| Sealing | IP65 |
| Switch type | emergency stop |
| Number of positions | 2 |
