A22L-GW-24A-10M
Pushbutton Switches SPST-NO MO RN 24V WH IP65 LED full-guard
廠商型號:
A22L-GW-24A-10M
芯天下內部編號:
232-A22L-GW-24A-10M
生產廠商:
Omron Industrial
描述:
Pushbutton Switches SPST-NO MO RN 24V WH IP65 LED full-guard
產品類別:
Switches|Pushbutton Switches|A22
客戶編號:
規格書:
查看PDF

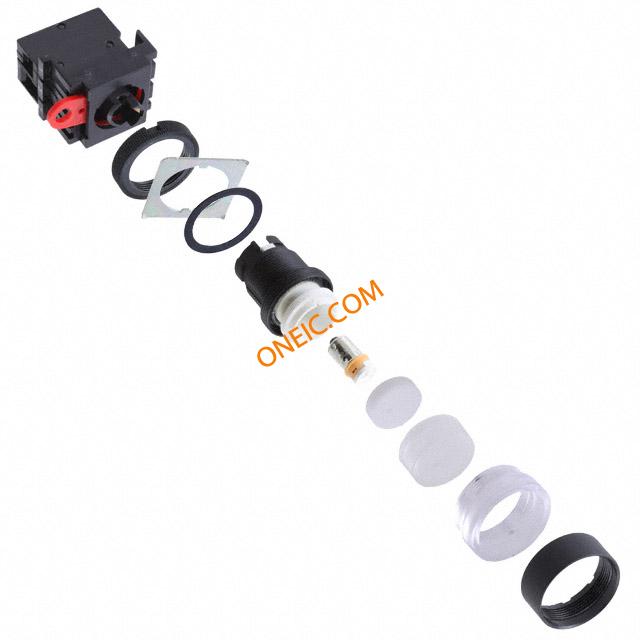

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Industry Aliases | A22L-GW-24A-10M |
| Subcategory | Switch Push Button |
| Lead Time | 56 Days |
| Packaging | Bulk |
| Switch Function | Off-Mom |
| Current Rating | 10A (AC/DC) |
| Panel Cutout Dimensions | Circular - 22.30mm Dia |
| Mounting Type | Panel Mount, Front |
| Voltage Rating - AC | 110V |
| Type | Standard, Illuminated |
| Electrical Life | 500,000 Cycles |
| Termination Style | Screw Terminal |
| Color - Actuator/Cap | White |
| Operating Temperature | -20°C ~ 55°C |
| Illumination Type, Color | LED, White |
| Actuator Type | Round, Button, Full Guard (Clear) |
| Standard Package | 1 |
| Voltage Rating - DC | 24V |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 5,000,000 Cycles |
| Illumination Voltage (Nominal) | 24 VAC/DC |
| Circuit | SPST-NO |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 1 |
| Voltage Rating AC | 440 V |
| Product Category | Pushbutton Switches |
| IP Rating | IP 65 |
| Series | A22 |
| Contact Form | SPST |
| Voltage Rating DC | 380 V |
| Mounting Style | Panel |
| Illumination Color | White |
| Illumination | LED |
| Actuator | Round, Guarded |
| RoHS | RoHS Compliant |
| 系列 | A22 |
| 面板開口尺寸 | Circular - 22.30mm Dia |
| 開關功能 | Off-Mom |
| 額定電壓 - 交流 | 110V |
| 裝配類型 | Panel Mount, Front |
| 電路 | SPST-NO |
| 額定電流 | 10A (AC/DC) |
| 照明電壓（標稱值） | 24 VAC/DC |
| 顏色 - 致動器/蓋帽 | White |
| 類型 | Standard, Illuminated |
| 照明類型，顏色 | LED, White |
| 致動器類型 | Round, Button, Full Guard (Clear) |
| 額定電壓 - 直流 | 24V |
