AML22CBM2AD
Pushbutton Switches SQ 1 LED YELL 24V DPDT SWITCH
廠商型號:
AML22CBM2AD
芯天下內部編號:
159-AML22CBM2AD
生產廠商:
Honeywell
描述:
Pushbutton Switches SQ 1 LED YELL 24V DPDT SWITCH
產品類別:
Electromechanical|Switches|Pushbutton Switches
客戶編號:
規格書:
查看PDF

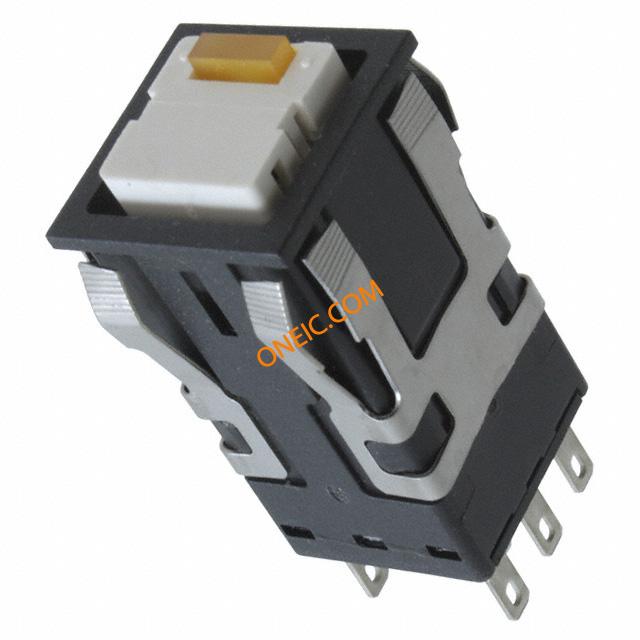

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| RoHS | RoHS Compliant |
| Contact Form | DPDT |
| Switch Function | Alternate |
| Current Rating | 3 A |
| Voltage Rating AC | 125 V |
| Voltage Rating DC | 24 V |
| Mounting Style | Snap In |
| Illumination | Illuminated |
| Illumination Color | Yellow LED |
| Termination Style | Solder |
| Function | Alternate Contact |
| Actuator Style | Square Button |
| EU RoHS | Compliant |
| Pole Throw Configuration | DPDT |
| Mounting | Panel Mount |
| Body Orientation | Straight |
| Switch Configuration | N.O./N.C. |
| Illumination Type | LED |
| Terminal Type | Quick Connect|Solder |
| Contact Material | Silver |
| LEDLampNeon Voltage | 24 V |
| Series Name | AML22 |
| AmpereVoltage Range (Resistive Load) | 0.4-2 A @ 0.5-30 Vdc|0.4-2 A @ 0.5 -250 Vac|0.4-3 A @ 0.5-125 Vac |
| LEDNeon Color | Yellow |
| UNSPSC Commodity | 30211913 Push button switches |
| Housing Type | Square |
| UNSPSC Code | 30211913 |
| Circuitry | DPDT |
| Termination | .110 x .020 (Solder or Quick-Connect) |
| Lamp Type | Lighted, 1 LED |
| Subcategory | Switch Push Button |
| Lead Time | 28 Days |
| Packaging | Bulk |
| Panel Cutout Dimensions | Square - 19.05mm2 |
| Mounting Type | Panel Mount, Snap-In |
| Voltage Rating - AC | 125V |
| Type | Standard, Illuminated |
| Electrical Life | 25,000 Cycles |
| Illumination Type, Color | LED, Yellow |
| Actuator Type | Square, Button (Not Included) |
| Standard Package | 1 |
| Voltage Rating - DC | 24V |
| Mechanical Life | 25,000 Cycles |
| Illumination Voltage (Nominal) | 24 VDC |
| Circuit | DPDT |
| rohs | Lead free / RoHS Compliant |
| Product | Standard Switches |
| Color | Black |
| Body Shape | Square |
| Contact Plating | Silver |
| Actuator | Square |
| Product Type | MICRO SWITCHa?￠ Pushbutton |
| Action | Alternate action |
| Ampere/Voltage Range (Resistive Load) | 0.4-2 A @ 0.5-30 Vdc|0.4-2 A @ 0.5 -250 Vac|0.4-3 A @ 0.5-125 Vac |
| LED/Lamp/Neon Voltage | 24 V |
| LED/Neon Color | Yellow |
| Comment | use AML52 button |
