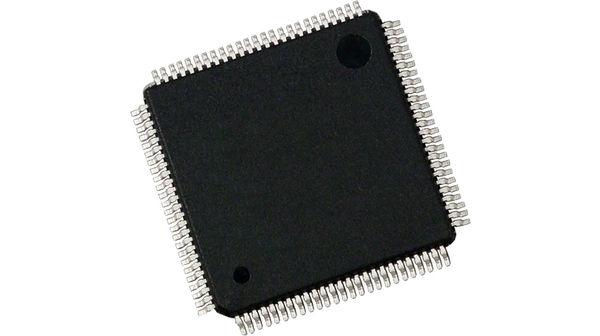

ATSAM3N1CA-AU
MCU 32-bit SAM3N ARM Cortex M3 RISC 64KB Flash 1.8V/3.3V 100-Pin LQFP
廠商型號:
ATSAM3N1CA-AU
芯天下內部編號:
8-ATSAM3N1CA-AU
生產廠商:
atmel
描述:
MCU 32-bit SAM3N ARM Cortex M3 RISC 64KB Flash 1.8V/3.3V 100-Pin LQFP
產品類別:
Microcontroller
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 100LQFP |
| Device Core | ARM Cortex M3 |
| Family Name | SAM3N |
| Program Memory Type | Flash |
| Program Memory Size | 64 KB |
| Maximum Speed | 48 MHz |
| Data Bus Width | 32 Bit |
| RAM Size | 8 KB |
| Operating Supply Voltage | 1.8|3.3 V |
| Operating Temperature | -40 to 85 °C |
| Interface Type | I2C/SPI/UART/USART |
| On-Chip ADC | 16-chx10-bit |
| On-Chip DAC | 1-chx10-bit |
| Number of Programmable I/Os | 79 |
| Number of Timers | 18 |
| Watchdog | 1 |
| Standard Package | Trays |
| Mounting | Surface Mount |
| ADC Bits | 10 |
| DAC Bits | 10 |
| Package Width | 14 |
| PCB | 100 |
| ADC Channels | 16 |
| EU RoHS | Compliant |
| Instruction Set Architecture | RISC |
| DAC Channels | 1 |
| SPI | 1 |
| Minimum Operating Temperature | -40 |
| Supplier Package | LQFP |
| Standard Package Name | QFP |
| Maximum Operating Temperature | 85 |
| Maximum Clock Rate | 48 |
| USART | 2 |
| Data Bus Width | 32 |
| Programmability | Yes |
| Core Architecture | ARM |
| Maximum Speed | 48 |
| Package Length | 14 |
| CECC Qualified | No |
| Minimum Operating Supply Voltage | 1.62 |
| Pin Count | 100 |
| Package Height | 1.4 |
| UART | 2 |
| Typical Operating Supply Voltage | 1.8|3.3 |
| Maximum Operating Supply Voltage | 1.95|3.6 |
| I2C | 2 |
| Lead Shape | Gull-wing |
| Packaging | Tube |
| Core Processor | ARM? Cortex?-M3 |
| Core Size | 32-Bit |
| Oscillator Type | Internal |
| Data Converters | A/D 16x10b; D/A 1x10b |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Number of I /O | 79 |
| Voltage - Supply (Vcc/Vdd) | 1.62 V ~ 3.6 V |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Package / Case | 100-TQFP |
| Speed | 48MHz |
| Other Names | ATSAM3N1CAAU |
| rohs | Lead free / RoHS Compliant |
| ADC Resolution | 10bit |
| ADCs | 16 x 10 bit |
| Dimensions | 14 x 14 x 1.45mm |
| Height | 1.45mm |
| Length | 14mm |
| Maximum Frequency | 48MHz |
| Maximum Number of CAN Channels | 0 |
| Maximum Number of Ethernet Channels | 0 |
| Maximum Number of I2C Channels | 2 |
| Maximum Number of LIN Channels | 0 |
| Maximum Number of PCI Channels | 0 |
| Maximum Number of SPI Channels | 1 |
| Maximum Number of UART Channels | 2 |
| Maximum Number of USART Channels | 2 |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Number of ADC Units | 1 |
| Number of PWM Units | 1 |
| Package Type | QFP |
| Pulse Width Modulation | 4 x 16 bit |
| PWM Channels | 4 |
| PWM Resolution | 16bit |
| Timer Resolution | 16bit |
| Timers | 18 x 16 bit |
| Typical Operating Supply Voltage | 1.62 → 3.6 V |
| Width | 14mm |
| Factory Pack Quantity | 90 |
| A/D Channels Available | 16 |
| A/D Bit Size | 10 bit |
| Core | ARM Cortex M3 |
| Mounting Style | SMD/SMT |
| Maximum Clock Frequency | 48 MHz |
| Data RAM Size | 8 KB |
| RoHS | RoHS Compliant |
| Processor Series | SAM3N |
| Series | SAM3N |
| Frequency (Max) | 48 MHz |
| Total Internal Ram Size | 8KB kB |
| Operating Temp Range | -40C to 85C |
| Number of Timers - General Purpose | 18 |
| Operating Temperature (Max) | 85C |
| Operating Temperature (Min) | -40C |
| Device Core Size | 32 b |
| Operating Temperature Classification | Industrial |
| Programmable | Yes |
| # I/Os (Max) | 79 |
| Rad Hardened | No |
| Operating Supply Voltage (Typ) | 1.8/3.3 V |
| Operating Supply Voltage (Min) | 1.62 V |
| Operating Supply Voltage (Max) | 1.95/3.6 V |
| Frequency | 48 MHz |
| Architecture | :ARM Cortex-M3 |
| RAM Memory Size | :8KB |
| CPU Speed | :48MHz |
| No. of I/O's | :79 |
| Digital IC Case Style | :QFP |
| No. of Pins | :100 |
| Embedded Interface Type | :I2C, SPI, UART, USART |
| Supply Voltage Min | :1.62V |
| Supply Voltage Max | :3.6V |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Controller Family/Series | :ARM Cortex-M3 |
| No. of PWM Channels | :4 |
| No. of Timers | :6 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Operating Temperature Range | :-40°C to +85°C |
| Supply Voltage Range | :1.62V to 3.6V |
| Weight (kg) | 0.002 |
| Tariff No. | 85423190 |
| Case | TQFP100 |
| Flash memory capacity | 64kB |
| Number of inputs/outputs | 79 |
| Multiplicity | 1 |
| Flash memory organisation | 64kx8bit |
| Gross weight | 0.43 g |
| Clock frequency | 48MHz |
| RAM memory capacity | 8kB |
| Supply voltage | 1.62...3.6V DC |
| Integrated circuit type | ARM Cortex M3 microcontroller |
| Collective package [pcs] | 25 |
| spg | 25 |
