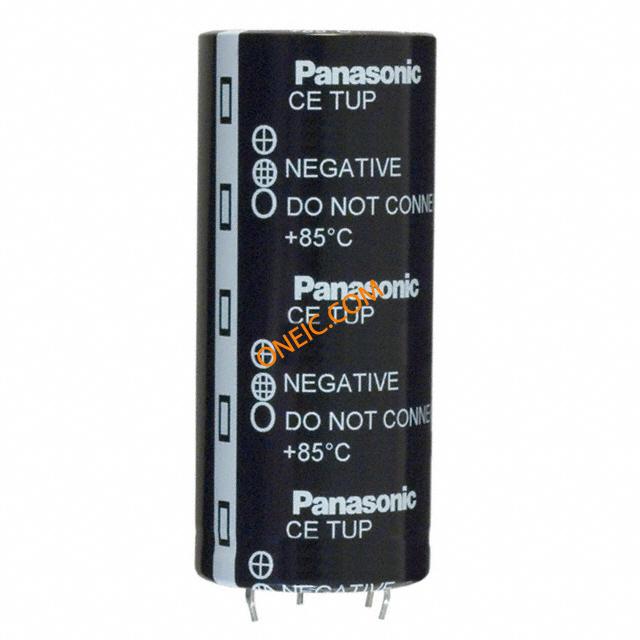

ECE-T1EP683EA
Cap Aluminum 68000uF 25V 20% (35 X 80mm) 0.013 Ohm 10430mA 3000 hr 85°C Bulk
廠商型號:
ECE-T1EP683EA
芯天下內部編號:
282-ECE-T1EP683EA
生產廠商:
panasonic
描述:
Cap Aluminum 68000uF 25V 20% (35 X 80mm) 0.013 Ohm 10430mA 3000 hr 85°C Bulk
產品類別:
Capacitor|Capacitor Aluminum
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting | Through Hole |
| Capacitance Value | 68000 uF |
| Voltage | 25 Vdc |
| Tolerance | 20 % |
| Equivalent Series Resistance | 0.013 Ohm |
| Ripple Current | 10430 mA |
| Lifetime | 3000 h |
| Product Diameter | 35 mm |
| Product Height | 80 mm |
| Operating Temperature | -40 to 85 °C |
| Termination Style | Snap-In |
| Standard Package | Bulk |
| RoHS | RoHS Compliant |
| Capacitance | 0.068 Farad |
| Voltage Rating | 25 V |
| ESR | 0.013 Ohms |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | T-UP |
| Diameter | 35 mm |
| Length | 80 mm |
| Lead Spacing | 22.5 mm |
| Product | General Purpose Electrolytic Capacitors |
| Capacitance - uF | 68000 uF |
| Dissipation Factor DF | 40 |
| Load Life | 3000 hr |
| Number of Pins | 4 |
| Packaging | Bulk |
| Factory Pack Quantity | 50 |
| Test Frequency | 120 Hz |
| メーカ | Panasonic |
| 靜電容量 | 0.068 Farad |
| 公差 | 20 % |
| 定格電圧 | 25 V |
| 動作溫度範囲 | - 40 C to + 85 C |
| シリーズ | T-UP |
| 直徑 | 35 mm |
| 長さ | 80 mm |
| リード間隔 | 22.5 mm |
| 製品 | General Purpose Electrolytic Capacitors |
| キャパシタンス - uF | 68000 uF |
| 散逸係數 DF | 40 |
| 負荷壽命 | 3000 hr |
| ピン數 | 4 |
| パッケージ化 | Bulk |
| リップル電流 | 10.43 A |
| 工場パックの數量 | 50 |
| 末端様式 | Snap In |
| テスト周波數 | 120 Hz |
| rohs | Lead free / RoHS Compliant |
| Type | Large Can Aluminum Electrolytic Capacitors |
