ECO-S2DA102DA
Cap Aluminum 1000uF 200V 20% (30 X 45mm) 10mm 0.199 Ohm 2200mA 3000 hr 105°C Bulk
廠商型號:
ECO-S2DA102DA
芯天下內部編號:
282-ECO-S2DA102DA
生產廠商:
panasonic
描述:
Cap Aluminum 1000uF 200V 20% (30 X 45mm) 10mm 0.199 Ohm 2200mA 3000 hr 105°C Bulk
產品類別:
Capacitor|Capacitor Aluminum

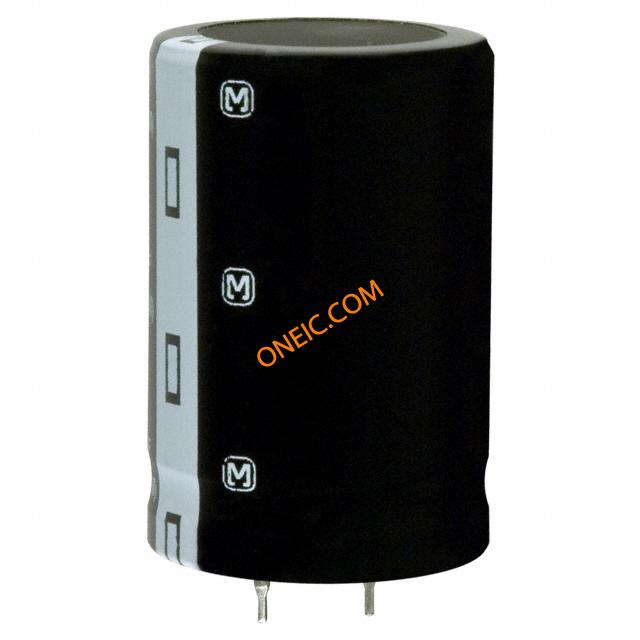

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting | Through Hole |
| Capacitance Value | 1000 uF |
| Voltage | 200 Vdc |
| Tolerance | 20 % |
| Equivalent Series Resistance | 0.199 Ohm |
| Ripple Current | 2200 mA |
| Lifetime | 3000 h |
| Product Diameter | 30 mm |
| Product Height | 45 mm |
| Lead Pitch For Radial | 10 mm |
| Operating Temperature | -40 to 105 °C |
| Termination Style | Snap-In |
| Standard Package | Bulk |
| RoHS | RoHS Compliant |
| Capacitance | 1000 uF |
| Voltage Rating | 200 V |
| ESR | 0.199 Ohms |
| Operating Temperature Range | - 40 C to + 105 C |
| Series | TSHA |
| Diameter | 30 mm |
| Length | 45 mm |
| Lead Spacing | 10 mm |
| Product | General Purpose Electrolytic Capacitors |
| Dissipation Factor DF | 15 |
| Load Life | 3000 hr |
| Number of Pins | 2 |
| Packaging | Bulk |
| Factory Pack Quantity | 200 |
| Test Frequency | 120 Hz |
| メーカ | Panasonic |
| 靜電容量 | 1000 uF |
| 公差 | 20 % |
| 定格電圧 | 200 V |
| 動作溫度範囲 | - 40 C to + 105 C |
| シリーズ | TSHA |
| 直徑 | 30 mm |
| 長さ | 45 mm |
| リード間隔 | 10 mm |
| 製品 | General Purpose Electrolytic Capacitors |
| 散逸係數 DF | 15 |
| 負荷壽命 | 3000 hr |
| ピン數 | 2 |
| パッケージ化 | Bulk |
| リップル電流 | 2.2 A |
| 工場パックの數量 | 200 |
| 末端様式 | Snap In |
| テスト周波數 | 120 Hz |
| Lead Diameter | 0.8 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 105 |
| Leakage Current | 1341.64@5Min |
| Equivalent Series Resistance Type | Standard |
| Equivalent Series Resistance | 0.199 |
| Lifetime | 3000 |
| Product Height | 45 |
| Lead Pitch For Radial | 10 |
| Ripple Current | 2200 |
| Type | Electrolytic |
| Product Diameter | 30 |
| rohs | Lead free / RoHS Compliant |
| Operating Temp Range | -40C to 105C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Lead Diameter (nom) | 0.8 mm |
| Construction | Snap-In |
| Tolerance (+ or -) | 20% |
| DCL | 1341.64 uA |
| Lead Spacing (nom) | 10 mm |
| Mounting Style | Through Hole |
| Seated Plane Height | Not Required mm |
| Size (mm) | 30 X 45 |
| Product Length (mm) | Not Required mm |
| Product Depth (mm) | Not Required mm |
| Product Height (mm) | 45 mm |
| Product Diameter (mm) | 30 mm |
