ECQ-V1H105JL
Cap Film 1uF 50V PET 5% (7.3 X 8 X 11mm) Radial 5mm 105°C Bulk
廠商型號:
ECQ-V1H105JL
芯天下內部編號:
282-ECQ-V1H105JL
生產廠商:
panasonic
描述:
Cap Film 1uF 50V PET 5% (7.3 X 8 X 11mm) Radial 5mm 105°C Bulk
產品類別:
Capacitor|Capacitor Film

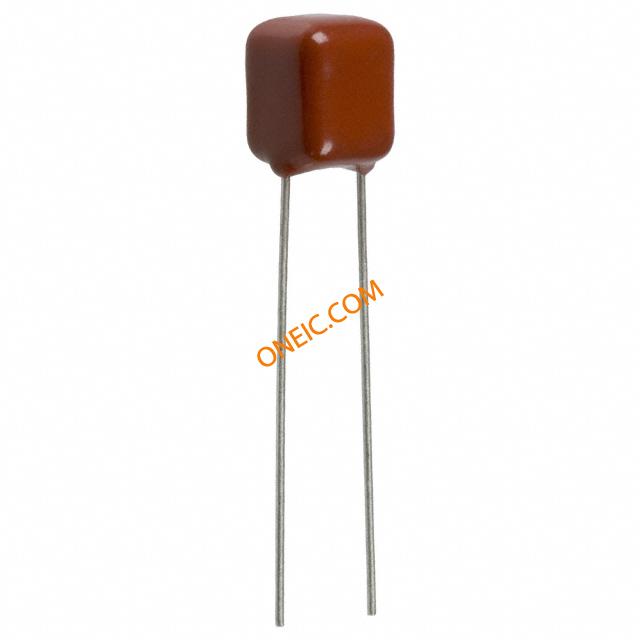

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package/Case | 7.3(Max) X 8(Max) X 11(Max) |
| Mounting | Through Hole |
| Capacitance Value | 1 uF |
| Voltage | 50 Vdc |
| Tolerance | 5 % |
| Dielectric | PET |
| Lead Pitch For Radial | 5 mm |
| Operating Temperature | -40 to 105 °C |
| Termination Style | Radial |
| Product Length | 7.3(Max) mm |
| Product Height | 11(Max) mm |
| Product Depth | 8(Max) mm |
| Standard Package | Bulk |
| Product Category | Film Capacitors |
| RoHS | RoHS Compliant |
| Product Type | AC Pulse, Suppression |
| Capacitance | 1 uF |
| Voltage Rating | 50 V |
| Series | ECQV(L)(M) |
| Operating Temperature Range | - 40 C to + 105 C |
| Lead Spacing | 5 mm |
| Capacitance - nF | 1000 nF |
| Case Height | 11 mm |
| Case Length | 7.3 mm |
| Case Width | 8 mm |
| Dissipation Factor DF | 1 |
| Lead Diameter | 0.5 mm |
| Packaging | Bulk |
| Product | Metallized Plastic Film Capacitors |
| Factory Pack Quantity | 1000 |
| Type | Stacked Film Capacitor |
| メーカ | Panasonic |
| 製品カテゴリ | フィルムコンデンサ |
| 製品タイプ | AC Pulse, Suppression |
| 誘導體 | Polyester |
| 靜電容量 | 1 uF |
| 公差 | 5 % |
| 定格電圧 | 50 V |
| シリーズ | ECQV(L)(M) |
| 動作溫度範囲 | - 40 C to + 105 C |
| 末端様式 | Radial |
| リード間隔 | 5 mm |
| 寸法 | 7.3 mm L x 8 mm W x 11 mm H |
| キャパシタンス - nF | 1000 nF |
| ケースの高さ | 11 mm |
| ケースの長さ | 7.3 mm |
| ケースの幅 | 8 mm |
| 散逸係數 DF | 1 |
| リード線の直徑 | 0.5 mm |
| パッケージ化 | Bulk |
| 製品 | Metallized Plastic Film Capacitors |
| 工場パックの數量 | 1000 |
| タイプ | Stacked Film Capacitor |
| Lead Diameter | 0.5 |
| Product Length | 7.3(Max) |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 105 |
| Product Depth | 8(Max) |
| Product Height | 11(Max) |
| Lead Pitch For Radial | 5 |
| Seated Plane Height | 12(Max) |
| Industry Aliases | ECQV1H105JL |
| Subcategory | Capacitor Plastic Film |
| Lead Time | 84 Days |
| Dielectric Material | Polyester, Metallized - Stacked |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Mounting Type | Through Hole |
| Size / Dimension | 0.287" L x 0.315" W (7.30mm x 8.00mm) |
| Applications | General Purpose |
| Voltage Rating - DC | 50V |
| Termination | PC Pins |
| rohs | Lead free / RoHS Compliant |
| Operating Temp Range | -40C to 105C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Lead Diameter (nom) | 0.5 mm |
| Construction | Radial |
| Tolerance (+ or -) | 5% |
| Temp Coeff (Dielectric) | PET |
| Lead Spacing (nom) | 5 mm |
| Mounting Style | Through Hole |
| Package / Case | Not Required |
| Product Length (mm) | 7.3 mm |
| Product Depth (mm) | 8 mm |
| Product Height (mm) | 11 mm |
| Seated Plane Height | 12 mm |
| Size (mm) | 7.3 X 8 X 11 |
| Product Diameter (mm) | Not Required mm |
| Brand/Series | ECQV Series |
| Diameter, Lead | 0.5 mm |
| Lead Type | Straight |
| Material, Element | Polyester Metallized |
| Temperature Range | –40 to 105 °C |
| Temperature, Operating, Maximum | 105 °C |
| Temperature, Operating, Minimum | –40 °C |
| Voltage, Rating | 50 VDC |
