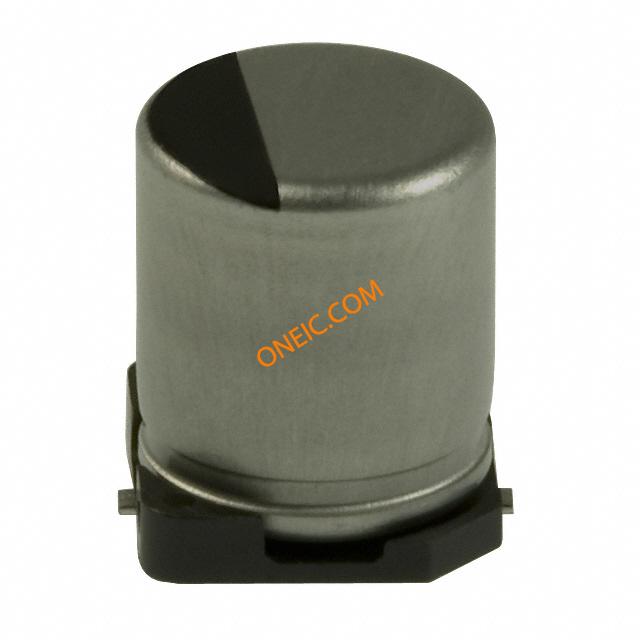

EEE-1VA101XAP
Cap Aluminum 100uF 35V 20% (6.3 X 7.7mm) SMD 132mA 2000 hr 85°C T/R
廠商型號:
EEE-1VA101XAP
芯天下內部編號:
282-EEE-1VA101XAP
生產廠商:
panasonic
描述:
Cap Aluminum 100uF 35V 20% (6.3 X 7.7mm) SMD 132mA 2000 hr 85°C T/R
產品類別:
Capacitor|Capacitor Aluminum
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Mounting | Surface Mount |
| Capacitance Value | 100 uF |
| Voltage | 35 Vdc |
| Tolerance | 20 % |
| Ripple Current | 132 mA |
| Lifetime | 2000 h |
| Product Diameter | 6.3 mm |
| Product Height | 7.7 mm |
| Operating Temperature | -40 to 85 °C |
| Construction | Cylindrical |
| Standard Package | Cut Tape |
| RoHS | RoHS Compliant |
| Capacitance | 100 uF |
| Voltage Rating | 35 V |
| Operating Temperature Range | - 40 C to + 85 C |

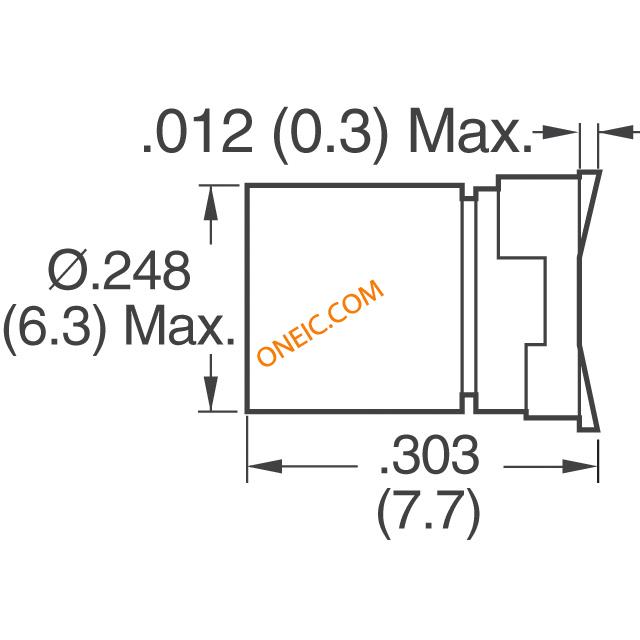

| Dimensions | 6.3 mm Dia. x 7.7 mm L x 7.8 mm H |
| Product | High Temp Electrolytic Capacitors |
| Dissipation Factor DF | 0.14 |
| Leakage Current | 3 uA |
| Load Life | 2000 hr |
| Packaging | Reel |
| Series | S |
| Factory Pack Quantity | 900 |
| Termination Style | SMD/SMT |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Leakage Current | 35@2Min |
| Lifetime | 2000 |
| Product Height | 7.7 |
| Ripple Current | 132 |
| Type | Electrolytic |
| Product Diameter | 6.3 |
| rohs | Lead free / RoHS Compliant |
| Case Diameter | 6.3 mm |
| Case Height | 7.8 mm |
| Case Length | 8 mm |
| Product Range | :PANASONIC - S Series |
| Capacitor Case Style | :Radial Can - SMD |
| Diameter | :6.3mm |
| Height | :7.7mm |
| Ripple Current AC | :132mA |
| Weight (kg) | 0 |
| Tariff No. | 85322200 |
| Brand/Series | S Series |
| Case Code | D8 |
| Case Size | 6.3 mm Dia. x 8 mm L |
| Material, Element | Aluminum Electrolytic |
| Temperature Range | –40 to 85 °C |
| Termination | SMT |
| Voltage, Rating | 35 VDC |
