EMIF01-1003M3
EMI Filter Flat Style SMD T/R
廠商型號:
EMIF01-1003M3
芯天下內部編號:
390-EMIF01-1003M3
生產廠商:
stmicroelectronics
描述:
EMI Filter Flat Style SMD T/R
產品類別:
Filter|EMI Filter

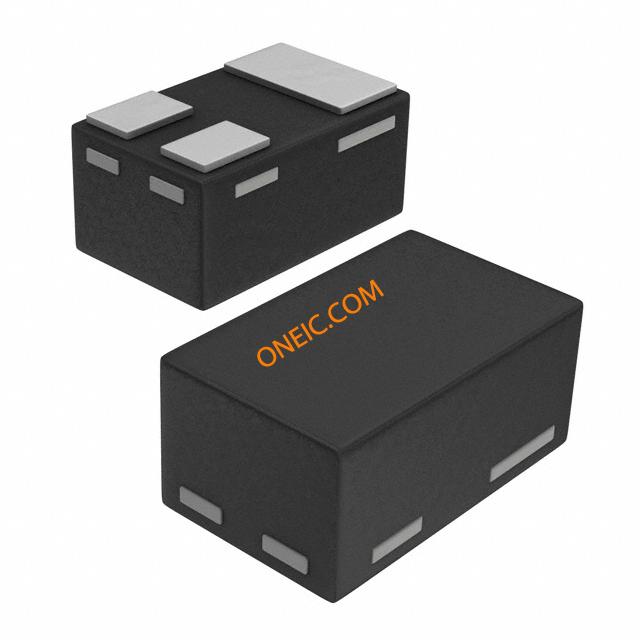

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| b'ESD\xe4\xbf\x9d\xe6\x8a\xa4' | Yes |
| b'RoHS' | RoHS Compliant |
| b'RoHS\xe6\x8c\x87\xe4\xbb\xa4' | Lead free / RoHS Compliant |
| b'\xe4\xb8\xad\xe5\xbf\x83/\xe6\x88\xaa\xe6\xad\xa2\xe9\xa2\x91\xe7\x8e\x87' | 900MHz (Cutoff) |
| b'\xe4\xba\xa7\xe5\x93\x81\xe5\x8e\x9a\xe5\xba\xa6' | 0.6(Typ) |
| b'\xe4\xba\xa7\xe5\x93\x81\xe7\xa7\x8d\xe7\xb1\xbb' | EMI Filter Beads, Chips & Arrays |
| b'\xe4\xba\xa7\xe5\x93\x81\xe9\x95\xbf\xe5\xba\xa6' | 1(Typ) |
| b'\xe4\xba\xa7\xe5\x93\x81\xe9\xab\x98\xe5\xba\xa6' | 0.5 |
| b'\xe5\x80\xbc' | R = 100 Ohms, C = 30pF |
| b'\xe5\x85\xb6\xe4\xbb\x96\xe5\x90\x8d\xe7\xa7\xb0' | 497-7738-1 |
| b'\xe5\x8d\x95\xe4\xbd\x8d\xe5\x8c\x85' | 12000 |
| b'\xe5\x93\x81\xe7\x89\x8c' | STMicroelectronics |
| b'\xe5\xae\x89\xe8\xa3\x85' | Surface Mount |
| b'\xe5\xae\xb6\xe5\xba\xad' | EMIF01-1003M3 |
| b'\xe5\xb0\x81\xe8\xa3\x85' | Tape and Reel |
| b'\xe5\xb0\x81\xe8\xa3\x85/\xe5\xa4\x96\xe5\xa3\xb3' | SC-101, SOT-883 |
| b'\xe5\xb0\xba\xe5\xaf\xb8/\xe5\xb0\xba\xe5\xaf\xb8' | 0.039" L x 0.024" W (1.00mm x 0.60mm) |
| b'\xe5\xb7\xa5\xe4\xbd\x9c\xe6\xb8\xa9\xe5\xba\xa6' | -40°C ~ 85°C |
| b'\xe5\xb7\xa5\xe5\x8e\x82\xe5\x8c\x85\xe8\xa3\x85\xe6\x95\xb0\xe9\x87\x8f' | 3000 |
| b'\xe5\xba\x94\xe7\x94\xa8\xe8\x8c\x83\xe5\x9b\xb4' | Data Lines for Mobile Devices |
| b'\xe6\x8a\x80\xe6\x9c\xaf' | RC (Pi) |
| b'\xe6\x9c\x80\xe4\xbd\x8e\xe5\xb7\xa5\xe4\xbd\x9c\xe6\xb8\xa9\xe5\xba\xa6' | -40 |
| b'\xe6\x9c\x80\xe4\xbd\x8e\xe5\xb7\xa5\xe4\xbd\x9c\xe6\xb8\xa9\xe5\xba\xa6' | -40 |
| b'\xe6\x9c\x80\xe5\xb0\x8f\xe8\xb5\xb7\xe8\xae\xa2\xe9\x87\x8f' | 12000 |
| b'\xe6\x9c\x80\xe9\xab\x98\xe5\xb7\xa5\xe4\xbd\x9c\xe6\xb8\xa9\xe5\xba\xa6' | 85 |
| b'\xe6\x9c\x80\xe9\xab\x98\xe5\xb7\xa5\xe4\xbd\x9c\xe6\xb8\xa9\xe5\xba\xa6' | 85 |
| b'\xe6\xa0\x87\xe5\x87\x86\xe5\x8c\x85\xe8\xa3\x85' | Tape & Reel |
| b'\xe6\xac\xa7\xe7\x9b\x9fRoHS\xe6\x8c\x87\xe4\xbb\xa4' | Compliant |
| b'\xe6\xbb\xa4\xe6\xb3\xa2\xe5\x99\xa8\xe9\x98\xb6\xe6\x95\xb0' | 2nd |
| b'\xe7\x94\xb5\xe9\x98\xbb - \xe9\x80\x9a\xe9\x81\x93\xef\xbc\x88\xe6\xac\xa7\xe5\xa7\x86\xef\xbc\x89' | 100 |
| b'\xe7\xab\xaf\xe5\xad\x90' | Flat Style |
| b'\xe7\xb1\xbb\xe5\x9e\x8b' | 1 Line EMI Filter and ESD Protection |
| b'\xe7\xb3\xbb\xe5\x88\x97' | EMIF01-1003M3 |
| b'\xe8\xa1\xb0\xe5\x87\x8f\xe5\x80\xbc' | 25dB @ 900MHz |
| b'\xe8\xba\xab\xe9\xab\x98' | 0.020" (0.50mm) |
| b'\xe9\x80\x9a\xe9\x81\x93\xe6\x95\xb0' | 1 |
