ETQP6F4R1LFA
Inductor SMD ETQP6F 4,1uH 7,9A
廠商型號:
ETQP6F4R1LFA
芯天下內部編號:
282-ETQP6F4R1LFA
生產廠商:
Panasonic
描述:
Inductor SMD ETQP6F 4,1uH 7,9A
產品類別:
Passive Components|Inductors|Wire-Wound Surface Mount Inductors
客戶編號:
瀏覽次數:
5

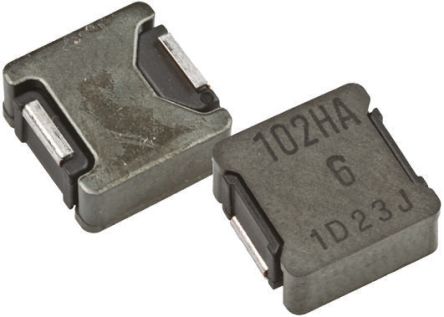

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Depth | 12.5mm |
| Dimensions | 12.5 x 12.5 x 5.7mm |
| Height | 5.7mm |
| Inductance | 4.1 μH |
| Length | 12.5mm |
| Maximum DC Current | 7.9A |
| Maximum DC Resistance | 8.64mΩ |
| Moulded | Yes |
| Tolerance | ±20% |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Tolerance (+ or -) | 20% |
| Shielding | Molded |
| Packaging | Tape and Reel |
| Type | Power Choke |
| Impedance | Not Required ohm |
| Test Frequency | 0.1 MHz |
| Military Standard | Not Required |
| Product Length (mm) | 12.9 mm |
| Product Depth (mm) | 12.8 mm |
| Product Height (mm) | 5.7 mm |
| DC Current | 7900 mA |
| DC Resistance | 0.00864 ohm |
| Product Diameter (mm) | Not Required mm |
| DELETED | Compliant |
| Technology | Wirewound |
| Board Level Components | Y |
| 容差 | ±20% |
| 深度 | 12.5mm |
| 高度 | 5.7mm |
| 長度 | 12.5mm |
| 尺寸 | 12.5 x 12.5 x 5.7mm |
| 模制 | 是 |
| 系列 | ETQP6F |
| 電感值 | 4.1 μH |
| 最大直流電阻值 | 8.64mΩ |
| 最大直流電流 | 7.9A |
| 芯材 | 金屬復合材料 |
