JC2AF-DC48V-F
General Purpose Relays 2 Form A 10A 250VAC 48VDC
廠商型號:
JC2AF-DC48V-F
芯天下內部編號:
282-JC2AF-DC48V-F
生產廠商:
Panasonic Electric Works
描述:
General Purpose Relays 2 Form A 10A 250VAC 48VDC
產品類別:
Electromechanical|Relays|General Purpose Relays
客戶編號:
規格書:
查看PDF

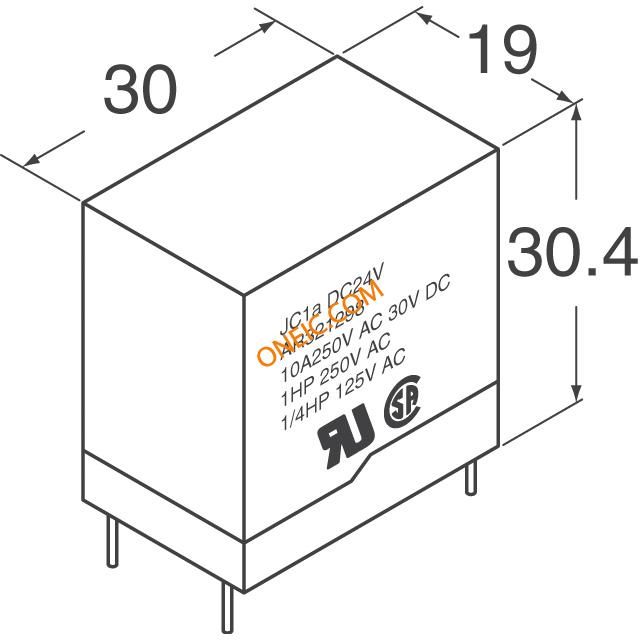

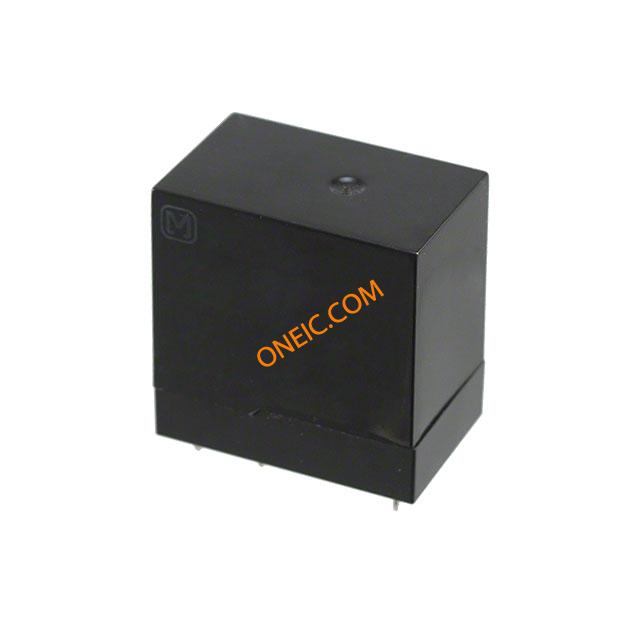

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | General Purpose Relays |
| RoHS | RoHS Compliant |
| Contact Form | 2 Form A (DPST-NO) |
| Coil Voltage | 48 VDC |
| Mounting Style | PCB |
| Contact Material | Silver Tin Oxide |
| Packaging | Bulk |
| Power Consumption | 1000 mW |
| Factory Pack Quantity | 50 |
| Life | Obsolete |
| Coil Current | 20.8mA |
| Turn On Voltage (Max) | 38.4 VDC |
| Coil Type | Non Latching |
| Turn Off Voltage (Min) | 4.8 VDC |
| Coil Power | 1 W |
| Relay Type | General Purpose |
| Termination Style | PC Pin |
| Switching Voltage | 250VAC - Max |
| Release Time | 10ms |
| Operating Temperature | -50°C ~ 60°C |
| Operate Time | 30ms |
| Contact Rating (Current) | 10A |
| Standard Package | 50 |
| Mounting Type | Through Hole |
| Coil Resistance | 2.3 kOhms |
| rohs | Lead free / RoHS Compliant |
| Initial contact resistance, max (By voltage drop 6 V DC 1 A) | 30 m? (Cd free type: 100 m?) |
| Min switching capacity | 100 mA, 5 V DC |
| Maximum switching voltage | 250 V AC |
| Drop-out voltage (min) | 4.8 VDC |
| Breakdown voltage - Between contact and coil | 4,000 Vrms for 1 min. |
| Unit weight | Approx. 31 g 1.09 oz |
| Current | 10 Amps |
| Nominal operating current | 20.8 mA |
| Contact material | Silver alloy |
| Nominal operating power | 1,000 mW |
| Contact force, min | 30 g |
| Operate time (at nominal voltage) | Max. 30 ms |
| Release time(without diode) (at nominal voltage) | Max. 10 ms |
| Maximum switching power | 2,500 VA |
| MainCategory | Relays |
| Initial insulation resistance | Min. 100 M? at 500 V DC |
| Ambient temp | 50C to +60C, 58F to +140F |
| Mounting | PC Board |
| Destructive Shock Resistance | 980 m/s^2 {100 G} |
| Coil resistance, (10%) | 2304 ohm |
| Pick-up voltage (max) | 38.4 VDC |
| Maximum allowable voltage, (at 60C) | 52.8 VDC |
| Breakdown voltage - Between open contacts | 2,000 V rms for 1 min. |
| SubCategory | General Purpose Relay |
| Expected life (min operation) - Mechanical | 510^6 |
| Max switching current | 10 A |
| Humidity | 5 to 85%R.H. |
| Expected life (min operation) - Electrical (resistive) - 10 A 250 V AC | n/a |
| Expected life (min operation) - Electrical (resistive) - 5A 250 V AC | 10^6 |
| Functional Shock Resistance | 196 m/s^2 {20 G} |
| Contact Configuration | 2A DPST-NO |
| Maximum operating speed | 20 cpm. |
| Destructive Vibration resistance | 117.6 m/s^2 {12 G}, 10 to 55 Hz at double amplitude of 2 mm |
| Operating Function | Single Side Stable |
| Temperature rise (at nominal voltage) | Max. 55C |
| Functional Vibration resistance | 98 m/s^2 {10 G}, 10 to 55 Hz at double amplitude of 1.6 mm |
| Breakdown voltage - Between contact sets | 2,000 Vrms for 1 min. |
