ZJYS5103-2PL
Common Mode Filters / Chokes 200ohms 100MHz 50V
廠商型號:
ZJYS5103-2PL
芯天下內部編號:
367-ZJYS5103-2PL
生產廠商:
TDK
描述:
Common Mode Filters / Chokes 200ohms 100MHz 50V
產品類別:
Passive Components|Inductors|Common Mode Filters / Chokes
客戶編號:
規格書:
查看PDF

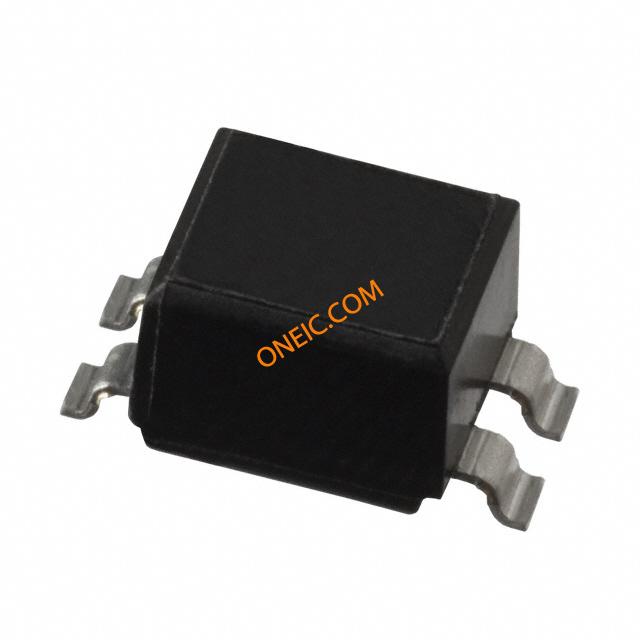

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| b'RoHS' | RoHS Compliant |
| b'RoHS\xe6\x8c\x87\xe4\xbb\xa4' | Lead free / RoHS Compliant |
| b'\xe4\xba\xa7\xe5\x93\x81\xe7\xa7\x8d\xe7\xb1\xbb' | Common Mode Filters / Chokes |
| b'\xe5\x8d\x95\xe4\xbd\x8d\xe9\x87\x8d\xe9\x87\x8f' | 0.014110 oz |
| b'\xe5\xa4\x96\xe5\xbd\xa2\xe5\xb0\xba\xe5\xaf\xb8' | 1.3 mm W x 5.5 mm L x 5.08 mm H |
| b'\xe5\xae\x89\xe8\xa3\x85\xe7\xb1\xbb\xe5\x9e\x8b' | Surface Mount |
| b'\xe5\xb0\x81\xe8\xa3\x85' | Reel |
| b'\xe5\xb0\x81\xe8\xa3\x85/\xe5\xa4\x96\xe5\xa3\xb3' | Horizontal, 4 Gull Wing |
| b'\xe5\xb0\xba\xe5\xaf\xb8/\xe5\xb0\xba\xe5\xaf\xb8' | 0.217" L x 0.354" W (5.50mm x 9.00mm) |
| b'\xe5\xb1\x8f\xe8\x94\xbd' | Unshielded |
| b'\xe5\xb7\xa5\xe4\xbd\x9c\xe6\xb8\xa9\xe5\xba\xa6' | -25°C ~ 85°C |
| b'\xe5\xb7\xa5\xe5\x8e\x82\xe5\x8c\x85\xe8\xa3\x85\xe6\x95\xb0\xe9\x87\x8f' | 1500 |
| b'\xe6\x9c\x80\xe5\xa4\xa7\xe7\x9b\xb4\xe6\xb5\x81\xe7\x94\xb5\xe6\xb5\x81' | 2 A |
| b'\xe6\x9c\x80\xe5\xa4\xa7\xe7\x9b\xb4\xe6\xb5\x81\xe7\x94\xb5\xe9\x98\xbb' | 0.06 Ohms |
| b'\xe6\xa0\x87\xe5\x87\x86\xe5\x8c\x85\xe8\xa3\x85' | 1,500 |
| b'\xe6\xbb\xa4\xe6\xb3\xa2\xe5\x99\xa8\xe7\xb1\xbb\xe5\x9e\x8b' | Data, Signal Line |
| b'\xe7\x94\xb5\xe6\x84\x9f' | 1 mH |
| b'\xe7\x94\xb5\xe6\xb5\x81' | 3A |
| b'\xe7\x9b\xb4\xe6\xb5\x81\xe7\x94\xb5\xe9\x98\xbb\xef\xbc\x88DCR \xef\xbc\x89' | 30 mOhm Max |
| b'\xe7\xab\xaf\xe6\x8e\xa5\xe7\xb1\xbb\xe5\x9e\x8b' | SMD/SMT |
| b'\xe7\xba\xbf\xe6\x95\xb0' | 2 |
| b'\xe8\xa1\xa8\xe5\xa3\xb3\xe5\x8e\x9a\xe5\xba\xa6' | 5.08 mm |
| b'\xe8\xa1\xa8\xe5\xa3\xb3\xe5\xae\xbd\xe5\xba\xa6' | 1.3 mm |
| b'\xe8\xa1\xa8\xe5\xa3\xb3\xe9\x95\xbf\xe5\xba\xa6' | 5.5 mm |
| b'\xe9\x98\xbb\xe6\x8a\x97' | 100 Ohm |
| b'\xe9\xab\x98\xe5\xba\xa6\xef\xbc\x88\xe6\x9c\x80\xe5\xa4\xa7\xef\xbc\x89' | 0.200" (5.08mm) |
