A22E-M-02

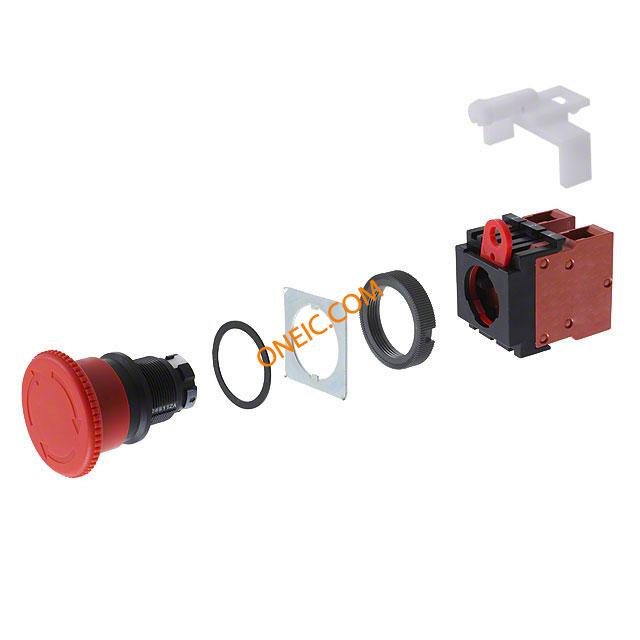

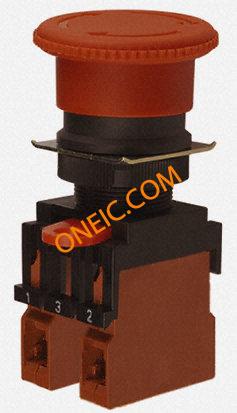

Pushbutton Switches DPST-NC 40mm HEAD Push-lock turn-reset
廠商型號:
A22E-M-02
芯天下內部編號:
232-A22E-M-02
生產廠商:
Omron Industrial
描述:
Pushbutton Switches DPST-NC 40mm HEAD Push-lock turn-reset
產品類別:
Switches|Pushbutton Switches|A22
客戶編號:
規(guī)格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規(guī)格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Minimum Insulation Resistance | 100 |
| Mounting | Panel Mount |
| Dielectric Strength | 2500VAC |
| Maximum Current Rating | 10@110VAC 24VDC |
| Maximum DC Voltage Rating | 380 |
| Actuator Color | Red |
| Type | Push-Lock Turn-Reset |
| Actuator Style | Mushroom Button |
| EU RoHS | Compliant |
| Pole Throw Configuration | DPST |
| Panel Cutout Dimensions | 22.3(Round) |
| Minimum Operating Temperature | -20 |
| Mechanical Life | 300000 |
| Terminal Type | Screw |
| Electrical Life | 300000 |
| Maximum Operating Temperature | 70 |
| IP Rating | IP65 |
| Body Orientation | Straight |
| Switch Configuration | N.C. |
| Number of Terminals | 4 |
| Maximum AC Voltage Rating | 440 |
| Product Height | 104.7 |
| Actuator Diameter | 40 |
| Industry Aliases | A22E-M-02 |
| Subcategory | Switch Misc |
| Lead Time | 56 Days |
| Packaging | Bulk |
| Switch Function | On-Off |
| Current Rating | 10A (AC/DC) |
| Panel Cutout Dimensions | Circular - 22.30mm Dia |
| Mounting Type | Panel Mount, Front |
| Voltage Rating - AC | 110V |
| Electrical Life | 300,000 Cycles |
| Termination Style | Screw Terminal |
| Color - Actuator/Cap | Red |
| Operating Temperature | -20°C ~ 70°C |
| Actuator Type | Round, Button, Mushroom |
| Standard Package | 1 |
| Voltage Rating - DC | 24V |
| Ingress Protection | IP65 - Dust Tight, Oil and Water Resistant |
| Mechanical Life | 300,000 Cycles |
| Circuit | DPST-NC |
| Features | Push-Lock, Turn-Reset |
| rohs | Lead free / RoHS Compliant |
| Depth | 86.7mm |
| Dimensions | 40 Dia. x 86.7 mm |
| Head Diameter | 40mm |
| Normal State Configuration | 2NC |
| Pole and Throw Configuration | DPST |
| Push Button Actuation | Maintained |
| Reset Method | Turn to Release |
| Factory Pack Quantity | 1 |
| Voltage Rating AC | 440 V |
| Product Category | Pushbutton Switches |
| Terminal Seal | IP65 |
| Series | A22E |
| Contact Form | DPST |
| Voltage Rating DC | 380 V |
| Mounting Style | Panel |
| Actuator | Round |
| Part # Aliases | 1689461 359905 |
| RoHS | RoHS Compliant |
| Switches features | return by rotating |
| Mounting hole diameter | ?22.5mm |
| Multiplicity | 1 |
| Contacts configuration | NC x2 |
| Switch standard | 22mm |
| Face dimensions | ?40mm |
| Gross weight | 0.07 kg |
| Stable positions number | 1-position |
| Operating temperature | -20...55°C |
| Button shape | mushroom |
| Button marking | arrows |
| Actuator colour | red |
| Sealing | IP65 |
| AC contacts rating (at resistance load) | 3 A / 230 VAC |
| Number of positions | 2 |
| Switch type | emergency stop |
| 顏色 | 紅色 |
| IP 防護等級 | IP65 |
| 刀和擲配置 | DPST |
| 安裝類型 | 面板安裝 |
| 照明 | 否 |
| 按鈕材料 | 塑料 |
| 尺寸 | 40 x 867 mm |
| 頭型 | 蘑菇形 |
| 深度 | 86.7mm |
| 復位方法 | 扭動復位 |
| 頭直徑 | 40mm |
| 正常狀態(tài)配置 | 常閉 |
| 系列 | A22E |
