A22E-MP-11
Pushbutton Switches SPST-NO+NC 40mm HEAD Push-lock pull-reset
廠商型號:
A22E-MP-11
芯天下內部編號:
232-A22E-MP-11
生產廠商:
Omron Industrial
描述:
Pushbutton Switches SPST-NO+NC 40mm HEAD Push-lock pull-reset
產品類別:
Switches|Pushbutton Switches|A22

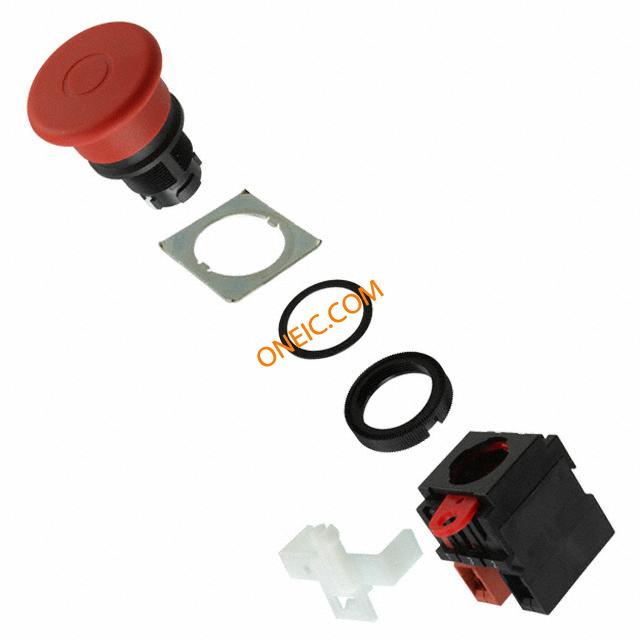

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Minimum Insulation Resistance | 100 |
| Mounting | Panel Mount |
| Dielectric Strength | 2500VAC |
| Maximum Current Rating | 10@110VAC 24VDC |
| Maximum DC Voltage Rating | 380 |
| Actuator Color | Red |
| Type | Push-Pull |
| Actuator Style | Mushroom Button |
| EU RoHS | Compliant |
| Pole Throw Configuration | SPST/SPST |
| Panel Cutout Dimensions | 22.3(Round) |
| Minimum Operating Temperature | -20 |
| Mechanical Life | 300000 |
| Terminal Type | Screw |
| Electrical Life | 300000 |
| Maximum Operating Temperature | 70 |
| IP Rating | IP65 |
| Body Orientation | Straight |
| Switch Configuration | N.O./N.C. |
| Number of Terminals | 4 |
| Maximum AC Voltage Rating | 440 |
| Product Height | 104.7 |
| Actuator Diameter | 40 |
| Industry Aliases | A22E-MP-11 |
| Subcategory | Switch Emergency Stop |
| Lead Time | 56 Days |
| Packaging | Bulk |
| Switch Function | On-Off, Off-On |
| Current Rating | 10A (AC/DC) |
| Panel Cutout Dimensions | Circular - 22.30mm Dia |
| Mounting Type | Panel Mount, Front |
| Voltage Rating - AC | 110V |
| Electrical Life | 300,000 Cycles |
| Termination Style | Screw Terminal |
| Color - Actuator/Cap | Red |
| Operating Temperature | -20°C ~ 70°C |
| Actuator Type | Round, Button, Mushroom |
| Standard Package | 1 |
| Voltage Rating - DC | 24V |
| Ingress Protection | IP65 - Dust Tight, Oil and Water Resistant |
| Mechanical Life | 300,000 Cycles |
| Circuit | DPST (1-NO, 1-NC) |
| Features | Push-Pull |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 1 |
| Product | Safety Switches |
| Product Category | Pushbutton Switches |
| Series | A22E |
| Contact Form | SPST |
| Voltage Rating AC | 440 V |
| Voltage Rating DC | 380 V |
| Mounting Style | Panel |
| Actuator | Round |
| Part # Aliases | 359903 |
| RoHS | In Transition |
