B82790C225N265
Common Mode Filters / Chokes DATA LINE-CHOKE 2X2.2MH -30%/+50%
廠商型號:
B82790C225N265
芯天下內部編號:
125-B82790C225N265
生產廠商:
EPCOS
描述:
Common Mode Filters / Chokes DATA LINE-CHOKE 2X2.2MH -30%/+50%
產品類別:
Passive Components|EMI/RFI Components|Common Mode Filters / Chokes
客戶編號:
規格書:
查看PDF

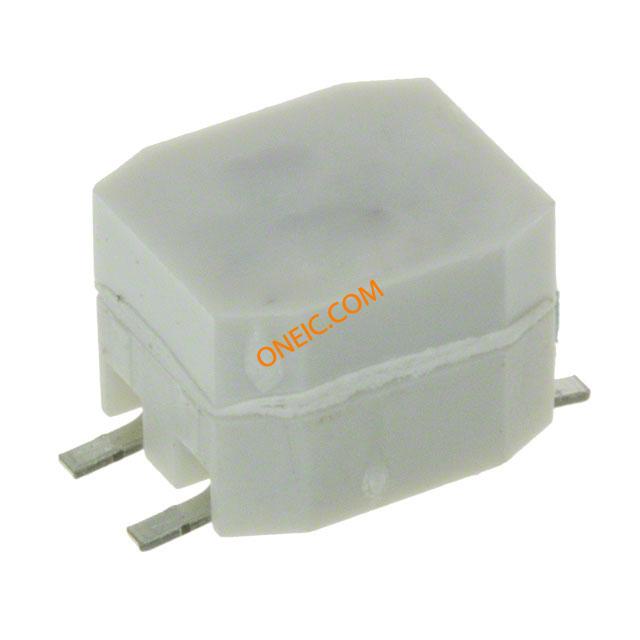

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| b'RoHS' | RoHS Compliant |
| b'RoHS\xe6\x8c\x87\xe4\xbb\xa4' | Lead free / RoHS Compliant |
| b'\xe4\xba\xa7\xe5\x93\x81' | Chokes |
| b'\xe4\xba\xa7\xe5\x93\x81\xe5\x8e\x9a\xe5\xba\xa6' | 9.4 |
| b'\xe4\xba\xa7\xe5\x93\x81\xe9\x95\xbf\xe5\xba\xa6' | 6 |
| b'\xe4\xba\xa7\xe5\x93\x81\xe9\xab\x98\xe5\xba\xa6' | 5.2 |
| b'\xe5\x85\xb6\xe4\xbb\x96\xe5\x90\x8d\xe7\xa7\xb0' | 495-5755-1 |
| b'\xe5\xa4\x96\xe5\xbd\xa2\xe5\xb0\xba\xe5\xaf\xb8' | 6 mm W x 9 mm L x 4.9 mm H |
| b'\xe5\xae\x89\xe8\xa3\x85' | Surface Mount |
| b'\xe5\xae\x89\xe8\xa3\x85\xe7\xb1\xbb\xe5\x9e\x8b' | Surface Mount |
| b'\xe5\xae\xb9\xe5\xb7\xae' | - 30 %, + 50 % |
| b'\xe5\xb0\x81\xe8\xa3\x85' | Blister Tape and Reel |
| b'\xe5\xb0\x81\xe8\xa3\x85/\xe5\xa4\x96\xe5\xa3\xb3' | Horizontal, 4 Gull Wing |
| b'\xe5\xb0\x81\xe8\xa3\x85/\xe5\xa4\x96\xe5\xa3\xb3' | Horizontal, 4 Gull Wing |
| b'\xe5\xb0\xba\xe5\xaf\xb8/\xe5\xb0\xba\xe5\xaf\xb8' | 0.280" L x 0.236" W (7.10mm x 6.00mm) |
| b'\xe5\xb7\xa5\xe4\xbd\x9c\xe6\xb8\xa9\xe5\xba\xa6' | -40°C ~ 125°C |
| b'\xe5\xb7\xa5\xe5\x8e\x82\xe5\x8c\x85\xe8\xa3\x85\xe6\x95\xb0\xe9\x87\x8f' | 1500 |
| b'\xe6\x9c\x80\xe5\xa4\xa7\xe7\x9b\xb4\xe6\xb5\x81\xe7\x94\xb5\xe6\xb5\x81' | 400 mA |
| b'\xe6\x9c\x80\xe5\xa4\xa7\xe7\x9b\xb4\xe6\xb5\x81\xe7\x94\xb5\xe6\xb5\x81' | 400 mA |
| b'\xe6\x9c\x80\xe5\xa4\xa7\xe7\x9b\xb4\xe6\xb5\x81\xe7\x94\xb5\xe9\x98\xbb' | 400 mOhms |
| b'\xe6\x9c\x80\xe5\xa4\xa7\xe7\x9b\xb4\xe6\xb5\x81\xe7\x94\xb5\xe9\x98\xbb' | 400 mOhms |
| b'\xe6\xa0\x87\xe5\x87\x86\xe5\x8c\x85\xe8\xa3\x85' | 1,500 |
| b'\xe6\xac\xa7\xe7\x9b\x9fRoHS\xe6\x8c\x87\xe4\xbb\xa4' | Compliant |
| b'\xe6\xb5\x8b\xe8\xaf\x95\xe9\xa2\x91\xe7\x8e\x87' | 10k |
| b'\xe6\xbb\xa4\xe6\xb3\xa2\xe5\x99\xa8\xe7\xb1\xbb\xe5\x9e\x8b' | Data, Signal Line |
| b'\xe6\xbc\x8f\xe6\x84\x9f' | 200n |
| b'\xe7\x94\xb5\xe6\x84\x9f' | 2.2m |
| b'\xe7\x94\xb5\xe6\xb5\x81' | 400mA |
| b'\xe7\x9b\xb4\xe6\xb5\x81\xe7\x94\xb5\xe9\x98\xbb\xef\xbc\x88DCR \xef\xbc\x89' | 400 mOhm |
| b'\xe7\xab\xaf\xe6\x8e\xa5\xe7\xb1\xbb\xe5\x9e\x8b' | SMD/SMT |
| b'\xe7\xb1\xbb\xe5\x9e\x8b' | Data Line/Signal Line |
| b'\xe7\xb3\xbb\xe5\x88\x97' | B82790C0 |
| b'\xe7\xba\xbf\xe6\x95\xb0' | 2 |
| b'\xe8\x80\x90\xe5\x8e\x8b' | 250VDC |
| b'\xe8\x8a\xaf\xe6\x9d\x90' | Ferrite |
| b'\xe8\xa1\xa8\xe5\xa3\xb3\xe5\x8e\x9a\xe5\xba\xa6' | 4.9 mm |
| b'\xe8\xa1\xa8\xe5\xa3\xb3\xe5\xae\xbd\xe5\xba\xa6' | 6 mm |
| b'\xe8\xa1\xa8\xe5\xa3\xb3\xe9\x95\xbf\xe5\xba\xa6' | 9 mm |
| b'\xe9\x85\x8d\xe7\xbd\xae' | Dual |
| b'\xe9\x9b\xb6\xe4\xbb\xb6\xe5\x8f\xb7\xe5\x88\xab\xe5\x90\x8d' | B82790C0225N265 |
| b'\xe9\xa2\x9d\xe5\xae\x9a\xe7\x94\xb5\xe5\x8e\x8b' | 42VAC|80VDC |
| b'\xe9\xab\x98\xe5\xba\xa6\xef\xbc\x88\xe6\x9c\x80\xe5\xa4\xa7\xef\xbc\x89' | 0.205" (5.20mm) |
