LQH31MN1R8J03L
Ind General Purpose Chip Unshielded Wirewound 1.8uH 5% 1MHz 35Q-Factor Ferrite 150mA 1206 Embossed T/R
廠商型號:
LQH31MN1R8J03L
芯天下內部編號:
233-LQH31MN1R8J03L
生產廠商:
murata electronics
描述:
Ind General Purpose Chip Unshielded Wirewound 1.8uH 5% 1MHz 35Q-Factor Ferrite 150mA 1206 Embossed T/R
產品類別:
Inductor|Inductor Surface Mount

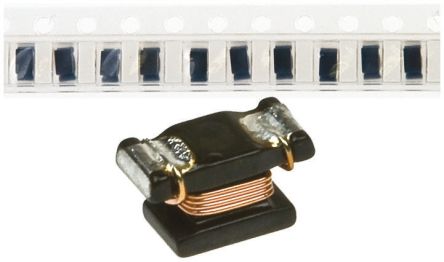

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package/Case | 1206 |
| Type | General Purpose Chip |
| Inductance | 1.8 uH |
| Maximum DC Current | 150 mA |
| Tolerance | 5 % |
| Maximum DC Resistance | 320(Typ) mOhm |
| Minimum Quality Factor | 35@10MHz |
| Core Material | Ferrite |
| Product Depth | 1.8 mm |
| Product Height | 2 mm |
| Standard Package | Tape & Reel |
| Product Category | Fixed Inductors |
| RoHS | RoHS Compliant |
| Operating Temperature Range | - 40 C to + 85 C |
| Self Resonant Frequency | 60 MHz |
| Q Minimum | 35 |
| Dimensions | 1.6 mm W x 3.2 mm L x 1.8 mm H |
| Termination Style | SMD/SMT |
| Package / Case | 1206 (3216 metric) |
| Case Height | 1.8 mm |
| Case Length | 3.2 mm |
| Case Width | 1.6 mm |
| Packaging | Reel |
| Factory Pack Quantity | 2000 |
| Maximum DC Resistance | 320m(Typ) |
| Product Length | 3.5 |
| EU RoHS | Compliant |
| Minimum Self Resonant Frequency | 60M |
| Maximum DC Current | 150m |
| Protection Style | Unshielded |
| Product Depth | 1.8 |
| Product Height | 2 |
| Test Frequency | 1M |
| Maximum Operating Temperature | 85 |
| Minimum Operating Temperature | -40 |
| Case Size | 1206 |
| Technology | Wirewound |
| Unit Pack | 2000 |
| MOQ | 2000 |
| Subcategory | Inductor Surface Mount |
| Lead Time | 84 Days |
| Depth | 1.6mm |
| Height | 1.8mm |
| Length | 3.2mm |
| Maximum Operating Temperature | +85°C |
| Maximum Self Resonant Frequency | 60MHz |
| Minimum Operating Temperature | -40°C |
| rohs | Compliant |
| Unit Weight | 0.001023 oz |
| Operating Temp Range | -40C to 85C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Case Size (Inches) | 1206 |
| Tolerance (+ or -) | 5% |
| Shielding | Unshielded |
| Impedance | Not Required ohm |
| Q | 35 |
| Test Frequency | 1 MHz |
| Military Standard | Not Required |
| Product Length (mm) | 3.5 mm |
| Product Depth (mm) | 1.8 mm |
| Product Height (mm) | 2 mm |
| DC Current | 150 mA |
| DC Resistance | 0.32 ohm |
| Product Diameter (mm) | Not Required mm |
| DELETED | Compliant |
| Product Range | :MURATA - LQH31MN_03 Series |
| Inductance Tolerance | :± 5% |
| Inductor Case Style | :1206 [3215 Metric] |
| Self Resonant Frequency Min | :60MHz |
| DC Resistance Max | :1.6ohm |
| DC Current Rating | :150mA |
| Inductor Construction | :Wirewound |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.00001 |
| Tariff No. | 85045020 |
