MB2011LS1W01
SWITCH PUSHBUTTON SPDT 6A 125V
廠商型號:
MB2011LS1W01
芯天下內部編號:
240-MB2011LS1W01
生產廠商:
NKK Switches
描述:
SWITCH PUSHBUTTON SPDT 6A 125V
產品類別:
Switches|Pushbutton Switches|MB2000

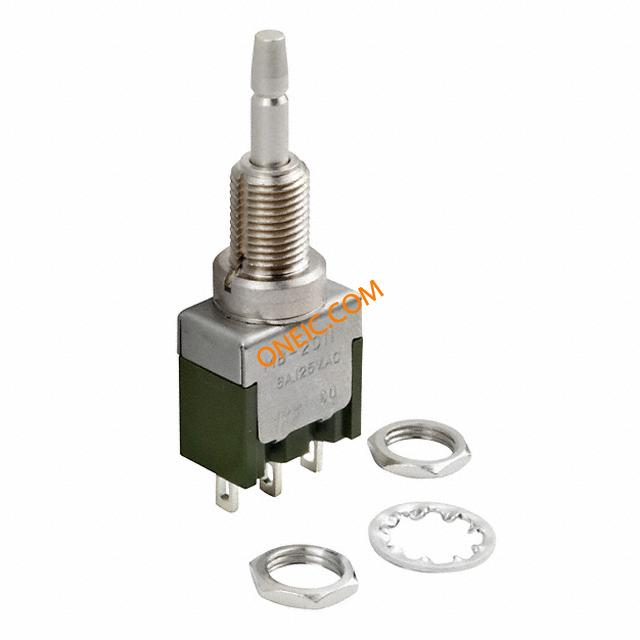

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Packaging | Bulk |
| Switch Function | On-Mom |
| Current Rating | 6A (AC), 3A (DC) |
| Panel Cutout Dimensions | Circular - 6.50mm Dia |
| Mounting Type | Panel Mount, Rear |
| Voltage Rating - AC | 125V |
| Type | Standard |
| Electrical Life | 25,000 Cycles |
| Termination Style | Solder Lug |
| Operating Temperature | -30°C ~ 85°C |
| Actuator Type | Plunger for Cap |
| Standard Package | 1 |
| Voltage Rating - DC | 30V |
| Mechanical Life | 100,000 Cycles |
| Circuit | SPDT |
| Features | Epoxy Sealed Terminals |
| Operating Temp Range | -30C to 85C |
| Contact Plating | Silver |
| Current Rating (Max) | 6 A |
| Mounting Style | Panel |
| Operating Temperature Max Deg. C | 85C |
| Contact Material | Silver Alloy |
| Operating Temperature Min Deg. C | -30C |
| Actuator Style | Round Plunger |
| Pole Throw Configuration | SPDT |
| Actuator Material | Brass |
| Illumination Type | Not Required |
| Product Length (mm) | 13 mm |
| Product Depth (mm) | 7.9 mm |
| Product Height (mm) | 39.4 mm |
| Terminal Type | Solder Lug |
| AC Voltage Rating (Max) | 250V |
| DC Voltage Rating (Max) | 30V |
| Switch Configuration | ON ON |
| Contact Configuration | :SPDT |
| Switch Operation | :On-(On) |
| Contact Voltage AC Nom | :125V |
| Contact Voltage DC Nom | :30V |
| Contact Current Max | :6A |
| Switch Terminals | :Solder |
| Weight (kg) | 0 |
| Tariff No. | 85365080 |
| rohs | RoHS Compliant Part |
