MB2011LS1W03-CC
Pushbutton Switches MINIATURE PUSHBUTTON/MULTI-FUNCTION
廠商型號:
MB2011LS1W03-CC
芯天下內部編號:
240-MB2011LS1W03-CC
生產廠商:
NKK Switches
描述:
Pushbutton Switches MINIATURE PUSHBUTTON/MULTI-FUNCTION
產品類別:
Switches|Pushbutton Switches|MB2000

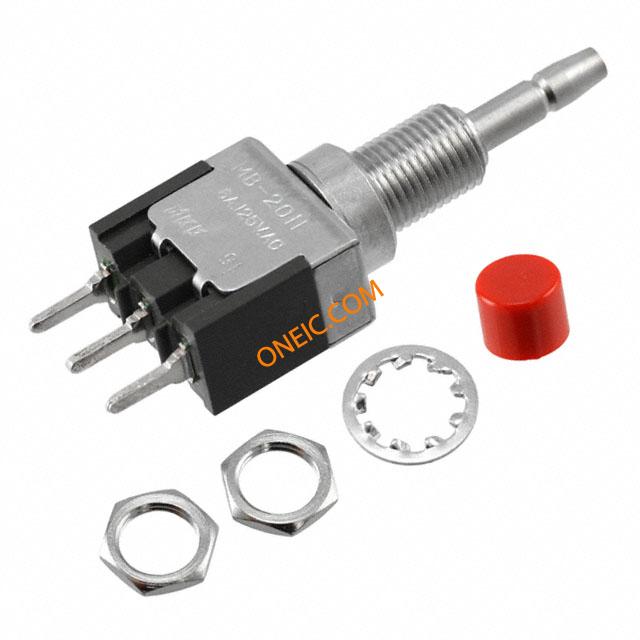

所示圖像僅為示意圖。請從產品數據表中獲得準確的規(guī)格。
庫存與訂購
產品參數
參數類型 | 參數值 |
---|---|
Function | Momentary Contact |
Electrical Life | 25000 |
Product Length | 13 |
EU RoHS | Compliant |
Maximum Operating Temperature | 85 |
Contact Plating | Silver |
Product Depth | 10 |
Mounting | Panel Mount/Through Hole |
Body Orientation | Straight |
Actuator Style | Round Plunger |
Switch Configuration | ON (ON) |
Maximum Current Rating | 6@125VAC |
Maximum DC Voltage Rating | 30 |
Maximum AC Voltage Rating | 250 |
Pole Throw Configuration | SPDT |
Terminal Type | PC Pins |
Minimum Operating Temperature | -30 |
Mechanical Life | 100000 |
Actuator Material | Brass |
Contact Material | Silver Alloy |
Packaging | Bulk |
Switch Function | On-Mom |
Current Rating | 6A (AC), 3A (DC) |
Panel Cutout Dimensions | Circular - 6.50mm Dia |
Mounting Type | Panel Mount, Rear |
Voltage Rating - AC | 125V |
Type | Standard |
Electrical Life | 25,000 Cycles |
Termination Style | PC Pin |
Color - Actuator/Cap | Red |
Operating Temperature | -30°C ~ 85°C |
Actuator Type | Round, Button |
Standard Package | 1 |
Voltage Rating - DC | 30V |
Mechanical Life | 100,000 Cycles |
Circuit | SPDT |
Features | Epoxy Sealed Terminals |
rohs | Lead free / RoHS Compliant |
Mounting Style | Through Hole |
Voltage Rating AC | 125 V |
Product Category | Pushbutton Switches |
Terminal Seal | Epoxy |
Series | MB2000 |
Contact Form | SPDT |
Housing Material | Diallyl Phthalate Resin |
Flammability Rating | UL 94 V-0 |
Actuator | Plunger, with Cap |
Part # Aliases | MB2011LS1W03-CC-RO |
RoHS | RoHS Compliant By Exemption |
Contact Configuration | :SPDT |
Switch Operation | :On-(On) |
Contact Voltage AC Nom | :125V |
Contact Voltage DC Nom | :30V |
Contact Current Max | :6A |
Switch Terminals | :Solder |
Weight (kg) | 0 |
Tariff No. | 85365080 |
