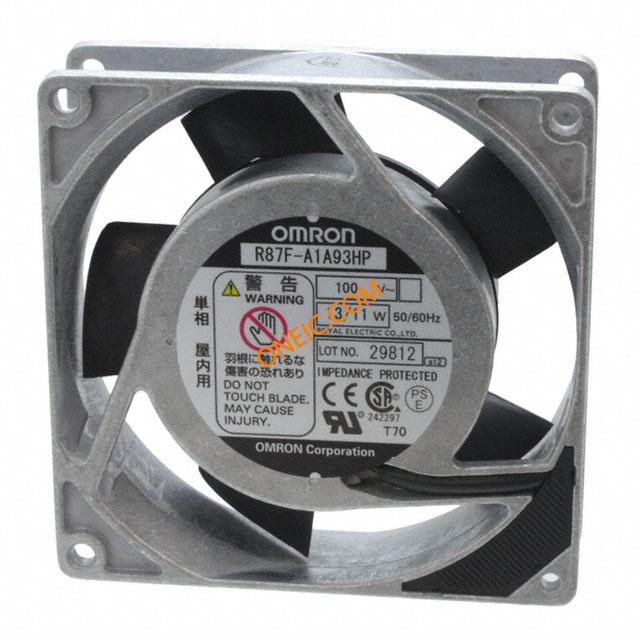

R87F-A1A93HP
Blowers TUBE AXIAL FAN
廠商型號:
R87F-A1A93HP
芯天下內部編號:
232-R87F-A1A93HP
生產廠商:
Omron Electronics
描述:
Blowers TUBE AXIAL FAN
產品類別:
Fans, Thermal Management|AC Fans|R87F
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Subcategory | Blowers and Fans |
| Lead Time | 105 Days |
| Static Pressure | 0.275 in H2O (68.6 Pa) |
| Material - Blade | Polycarbonate (PC) |
| Noise | 36 dB |
| Current Rating | 0.130A |
| Voltage - Rated | 100VAC |
| Standard Package | 1 |
| Material - Frame | Aluminum |
| Bearing Type | Ball |
| Size / Dimension | Square - 92mm L x 92mm H x 25mm W |
| Weight | 0.661 lb (299.82g) |
| Operating Temperature | -22 ~ 158°F (-30 ~ 70°C) |
| Air Flow | 35.3 CFM (1.00m3/min) |
| Fan Type | Tubeaxial |
| Termination | 2 Terminals |
| Power (Watts) | 11.0W |
| RPM | 3050 RPM |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 1 |
| Product Category | Blowers |
| Series | R87F |
| Part # Aliases | 381176 |
| RoHS | RoHS Compliant |
相似產品
| 型號 | 廠商 | 描述 | 操作 |
|---|---|---|---|
| R87F-A1A13HP | Omron Electronics | Fans Tubeaxial Fan 100V 50/60 Hz | 查看詳情 |
| R87F-A1A13LP | omron electronics | AC Fan Ball Bearing 100V 0.14A/11A 12W/10W 50Hz/60Hz 1700RPM/2000RPM 45.91CFM/52.97CFM 32dB/34dB Flange Mount | 查看詳情 |
| R87F-A1A15HP | Omron Electronics | Fans TUBE AXIAL FAN | 查看詳情 |
| R87F-A1A15MP | omron electronics | TUBE AXIAL FAN | 查看詳情 |
| R87F-A1A83H | omron electronics | AC Fan Ball Bearing 100V 0.097A/0.08A 7W/6W 50Hz/60Hz 2600RPM/3000RPM 21.19CFM/24.72CFM 32dB/36dB Flange Mount | 查看詳情 |
| R87F-A1A83L | omron electronics | AC Fan Ball Bearing 100V 0.063A/0.055A 5W/4W 50Hz/60Hz 1900RPM/2100RPM 14.13CFM/17.65CFM 28dB/30dB Flange Mount | 查看詳情 |
| R87F-A1A85HP | Omron Electronics | Blowers TUBE AXIAL FAN | 查看詳情 |
| R87F-A3A13HP | Omron Electronics | Blowers TUBE AXIAL FAN | 查看詳情 |
| R87F-A3A15HP | Omron Electronics | Blowers TUBE AXIAL FAN | 查看詳情 |
| R87F-A3A15MP | omron electronics | AC Fan Ball Bearing 115V 0.19A/0.16A 15W/14W 50Hz/60Hz 2450RPM/2700RPM 77.69CFM/88.29CFM 39dB/42dB Flange Mount | 查看詳情 |
| R87F-A3A83H | Omron Electronics | Blowers TUBE AXIAL FAN | 查看詳情 |
| R87F-A3A83L | Omron Electronics | Blowers TUBE AXIAL FAN | 查看詳情 |
| R87F-A3A93HP | omron electronics | AC Fan Ball Bearing 115V 0.125A/0.1A 13W/11W 50Hz/60Hz 2550RPM/3050RPM 31.78CFM/35.31CFM 33dB/36dB Flange Mount | 查看詳情 |
| R87F-A3A93LP | omron electronics | AC Fan Ball Bearing 115V 0.09A/0.075A 7W/6W 50Hz/60Hz 1900RPM/2200RPM 24.72CFM/28.25CFM 29dB/32dB Flange Mount | 查看詳情 |
| R87F-A4A13HP | Omron Electronics | Blowers TUBE AXIAL FAN | 查看詳情 |
| R87F-A4A13LP | Omron Electronics | Blowers TUBE AXIAL FAN | 查看詳情 |
| R87F-A4A15HP | Omron Electronics | Fans Axial Fan, 200VAC 120x120x38mm | 查看詳情 |
| R87F-A4A15MP | Omron Electronics | Blowers TUBE AXIAL FAN | 查看詳情 |
| R87F-A4A83L | Omron Electronics | Blowers TUBE AXIAL FAN | 查看詳情 |
| R87F-A4A85HP | Omron Electronics | Blowers TUBE AXIAL FAN | 查看詳情 |
文檔與媒體
| 資源類型 | 鏈接 |
|---|---|
| 數據表 |
