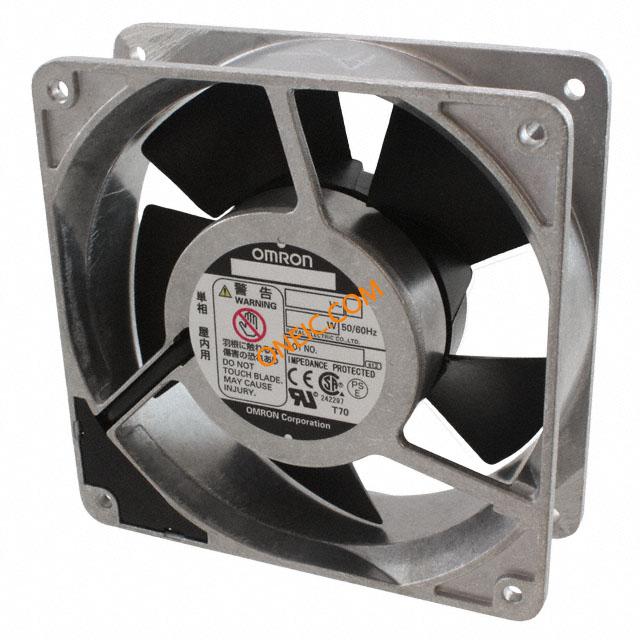

R87F-A4A15HP
Fans Axial Fan, 200VAC 120x120x38mm
廠商型號:
R87F-A4A15HP
芯天下內部編號:
232-R87F-A4A15HP
生產廠商:
Omron Electronics
描述:
Fans Axial Fan, 200VAC 120x120x38mm
產品類別:
Fans, Thermal Management|AC Fans|R87F
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Industry Aliases | R87FA4A15HP |
| Subcategory | Blowers and Fans |
| Lead Time | 105 Days |
| Static Pressure | 0.374 in H2O (93.1 Pa) |
| Material - Blade | Polycarbonate (PC) |
| Noise | 42 dB |
| Current Rating | 0.100A |
| Voltage - Rated | 200VAC |
| Standard Package | 1 |
| Material - Frame | Aluminum |
| Bearing Type | Ball |
| Size / Dimension | Square - 120mm L x 120mm H x 38mm W |
| Weight | 1.2 lbs (544.3g) |
| Operating Temperature | -22 ~ 158°F (-30 ~ 70°C) |
| Air Flow | 95.3 CFM (2.70m3/min) |
| Fan Type | Tubeaxial |
| Termination | 2 Terminals |
| Power (Watts) | 15.0W |
| RPM | 2750 RPM |
| rohs | Lead free / RoHS Compliant |
| Frame Dimensions (mm) | 120 mm x 38 mm x 120 mm |
| Factory Pack Quantity | 1 |
| Product | Fans |
| Product Category | Fans |
| Series | R87F |
| Termination Style | Terminals |
| Housing Material | Aluminum |
| Current Type | AC |
| Supply Voltage | 200 V |
| Power Rating | 14 W |
| Speed | 3200 RPM |
| Part # Aliases | 381192 |
| RoHS | RoHS Compliant |
| Frame Dimensions | :120mm x 120mm x 38mm |
| Flow Rate - Imperial | :109.475cu.ft/min |
| Flow Rate - Metric | :3.1m /min |
| Noise Rating | :46dB |
| Weight (kg) | 0 |
| Tariff No. | 84145920 |
