XFFR-04X4
XFFR-04X4
廠商型號:
XFFR-04X4
芯天下內部編號:
35-XFFR-04X4
生產廠商:
te connectivity / raychem wire
描述:
XFFR-04X4
產品類別:
Interconnect|Connector Other
客戶編號:
規格書:
查看PDF

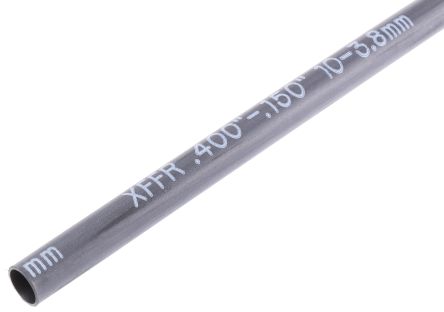

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Standard Pack: | 20 |
| I.D. Supplied - Metric | :10.16mm |
| I.D. Supplied - Imperial | :0.399" |
| I.D. Recovered Max - Metric | :3.81mm |
| I.D. Recovered Max - Imperial | :0.149" |
| Shrink Tubing / Boot Material | :PO (Polyolefin) |
| Shrink Tubing / Boot Colour | :Black |
| Total Length - Metric | :1.2m |
| Total Length - Imperial | :3.94ft |
| Accessory Type | :Heat Shrink Tubing |
| Body Material | :Polyolefin |
| Cable Diameter Max | :10.1mm |
| Cable Diameter Min | :3.81mm |
| Colour | :Black |
| Fully Shrunk Diameter | :3.81mm |
| I.D. Max Recovered | :3.81mm |
| I.D. Supplied | :10.16mm |
| Internal Diameter | :10.16mm |
| Length (Imperial) | :3.94ft |
| Material | :Halogen Free Polyolefin |
| Operating Temperature Max | :110°C |
| Operating Temperature Min | :-55°C |
| Reel Length (Imperial) | :3ft |
| Reel Length (Metric) | :1.2m |
| Series | :XFFR |
| Shrink Temperature | :70°C |
| Shrink Type | :Heat |
| Unshrunk Diameter | :10.16mm |
| Wall Thickness | :1.52mm |
| Weight (kg) | 0.04 |
| Tariff No. | 85469090 |
