Y4485V0002QT9R
Resistor Networks & Arrays 5K/5K tcr0.2 1:1 0.02
廠商型號:
Y4485V0002QT9R
芯天下內部編號:
5-Y4485V0002QT9R
生產廠商:
Vishay Precision Group Foil Resistors
描述:
Resistor Networks & Arrays 5K/5K tcr0.2 1:1 0.02
產品類別:
Resistors|Resistor Networks, Arrays|DSMZ
客戶編號:
規格書:
查看PDF

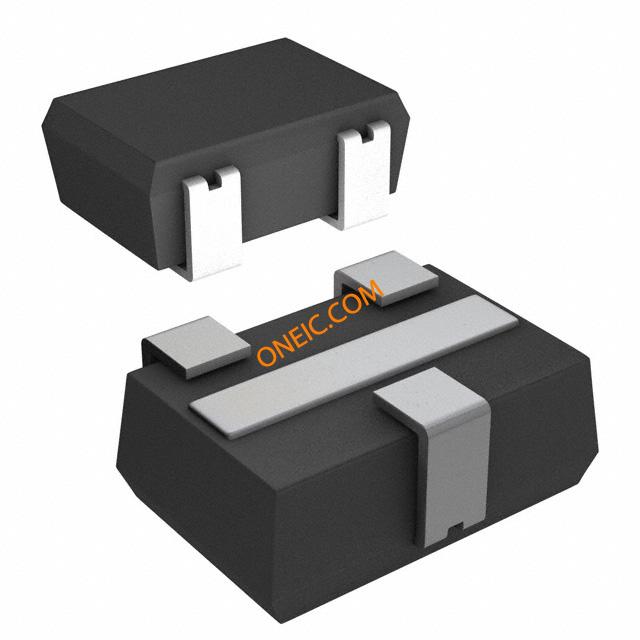

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Packaging | Tape & Reel (TR) |
| Resistance (Ohms) | 5k |
| Power Per Element | 50mW |
| Mounting Type | Surface Mount |
| Circuit Type | Voltage Divider |
| Temperature Coefficient | ±0.2ppm/°C |
| Height | 0.071" (1.80mm) |
| Size / Dimension | 0.160" L x 0.106" W (4.06mm x 2.69mm) |
| Applications | Voltage Divider (TCR Matched) |
| Operating Temperature | -55°C ~ 125°C |
| Number of Pins | 3 |
| Number of Resistors | 2 |
| Standard Package | 100 |
| Tolerance | ±0.02% |
| Package/Case | 1610 J-Lead (3 Terminals) |
| Other Names | Y4485-5K/5KBCT |
| rohs | Lead free / RoHS Compliant |
| Power per Element | 0.05 W |
| Voltage Rating | 25 V |
| Series | DSMZ |
| Operating Temperature Range | - 55 C to + 125 C |
| Termination Style | SMD/SMT |
| Unit Weight | 0.001411 oz |
| Case Length | 4.06 mm |
| Resistor Values | 5 kOhms, 5 kOhms |
| Case Height | 1.6 mm |
| Case Width | 2.69 mm |
| RoHS | RoHS Compliant |
| Resistance | :5kohm |
| Resistance Tolerance | :± 0.02% |
| Power Rating per Element | :50mW |
| No. of Elements | :2 |
| Resistor Case Style | :SMD |
| Power Rating | :100mW |
| Resistor Mounting | :SMD |
| Weight (kg) | 0.0004 |
| Tariff No. | 85332100 |
| Package / Case | 1610 J-Lead (3 Terminals) |
| Brand/Series | Y4485 Series |
| Circuit | Divider Network |
| Material, Element | Metal Foil |
| Number of Terminals | 3 |
| Package Type | SMT |
| Power, Rating | 0.1 W |
| Termination | SMT |
