CR102J5GS215QF6
Switch Rocker ON None OFF SPST Quick Connect Oval Rocker 16A 250VAC
廠商型號:
CR102J5GS215QF6
芯天下內部編號:
54-CR102J5GS215QF6
生產廠商:
c&k components
描述:
Switch Rocker ON None OFF SPST Quick Connect Oval Rocker 16A 250VAC
產品類別:
Switches and Relays|Switches|Rocker Switch
客戶編號:
規格書:
查看PDF

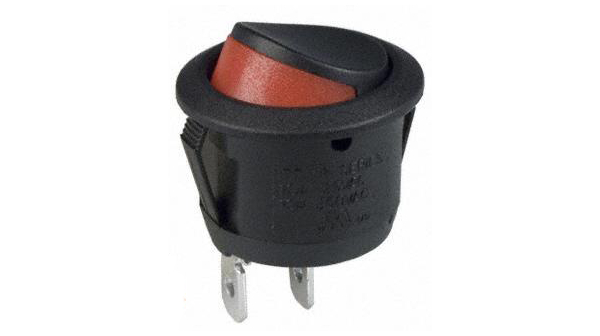

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Switch Configuration | ON None OFF |
| Pole Throw Configuration | SPST |
| Mounting | Panel Mount |
| Maximum Current Rating | 16@125VAC A |
| Maximum AC Voltage Rating | 250 V |
| Terminal Type | Quick Connect |
| Illumination Type | LED |
| Operating Temperature | -20 to 85 °C |
| Standard Package | Bulk |
| Actuator Style | Oval Rocker |
| Electrical Life | 10000 |
| Product Length | 23 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Product Depth | 23 |
| Product Height | 28.1 |
| Base/Housing Material | N/A/Nylon 6/6 |
| Maximum AC Voltage Rating | 250 |
| Contact Plating | Silver |
| Minimum Operating Temperature | -20 |
| Maximum Current Rating | 16@125VAC |
| Actuator Material | Polycarbonate |
| Unit Pack | 1 |
| MOQ | 1000 |
| Series | * |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 1 |
| Current Rating | 10 A |
| Actuator | Rocker |
| RoHS | RoHS Compliant |
| 系列 | * |
| Rocker | black/green |
| Description | LED-Illuminated 2-tone Rocker |
| Rated current | 10 A@ 250 VAC |
| Rated voltage | 250 |
| Housing | black |
| Poles | 1 |
| Termination type | Blade Terminal 4.8 x 0.8 mm |
| Assembly cutout | ? 20.2 mm |
| Temperature range | -20...+85 °C |
| Illumination | green |
| Switching type, ( )momentary | on-off |
| Contact material | AgSnO2 |
