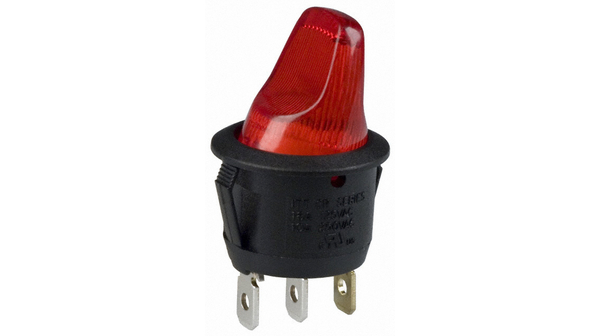

CR102JPRS215QF8
Switch Rocker ON None OFF SPST Quick Connect Paddle Rocker 16A 250VAC
廠商型號:
CR102JPRS215QF8
芯天下內部編號:
54-CR102JPRS215QF8
生產廠商:
c&k components
描述:
Switch Rocker ON None OFF SPST Quick Connect Paddle Rocker 16A 250VAC
產品類別:
Switches and Relays|Switches|Rocker Switch
所示圖像僅為示意圖。請從產品數據表中獲得準確的規(guī)格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Switch Configuration | ON None OFF |
| Pole Throw Configuration | SPST |
| Mounting | Panel Mount |
| Maximum Current Rating | 16@125VAC A |
| Maximum AC Voltage Rating | 250 V |
| Terminal Type | Quick Connect |
| Illumination Type | Neon Lamp |
| Operating Temperature | -20 to 85 °C |
| Standard Package | Bulk |
| Actuator Style | Paddle Rocker |
| Electrical Life | 10000 |
| Product Length | 23 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Product Depth | 23 |
| Product Height | 40.1 |
| Base/Housing Material | N/A/Nylon 6/6 |
| Maximum AC Voltage Rating | 250 |
| Contact Plating | Silver |
| Minimum Operating Temperature | -20 |
| Maximum Current Rating | 16@125VAC |
| Actuator Material | Polycarbonate |
| Unit Pack | 1 |
| MOQ | 1000 |
| Packaging | Bulk |
| Switch Function | On-Off |
| Current Rating | 10A (AC) |
| Mounting Type | Panel Mount, Snap-In |
| Voltage Rating - AC | 125V |
| Electrical Life | 10,000 Cycles |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Color - Actuator/Cap | Red |
| Actuator Marking | No Marking |
| Panel Cutout Dimensions | Circular - 20.20mm Dia |
| Illumination Voltage (Nominal) | 250 VAC |
| Circuit | SPST |
| Illumination Type, Color | Neon, Red |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 1 |
| Voltage Rating AC | 250 V |
| Product Category | Rocker Switches |
| Contact Rating | 10 A at 125 V |
| Series | CR |
| Contact Form | SPST |
| Illumination Color | Red |
| Mounting Style | Panel |
| Actuator | Rocker |
| Illumination | Neon |
| RoHS | RoHS Compliant |
| Description | Neon iluminated Paddle |
| Rated current | 10 A@ 250 VAC |
| Rated voltage | 250 |
| Housing | black |
| Poles | 1 |
| Termination type | Blade Terminal 4.8 x 0.8 mm |
| Assembly cutout | ? 20.2 mm |
| Temperature range | -20...+85 °C |
| Switching type, ( )momentary | on-off |
| Contact material | AgSnO2 |
