UPW1H100MDD
Aluminum Electrolytic Capacitors - Leaded 50volts 10uF 5x11 20% 2LS
廠商型號:
UPW1H100MDD
芯天下內部編號:
244-UPW1H100MDD
生產廠商:
Nichicon
描述:
Aluminum Electrolytic Capacitors - Leaded 50volts 10uF 5x11 20% 2LS
產品類別:
Passive Components|Capacitors|Aluminum Electrolytic Capacitors|Aluminum Electrolytic Capacitors - Leaded

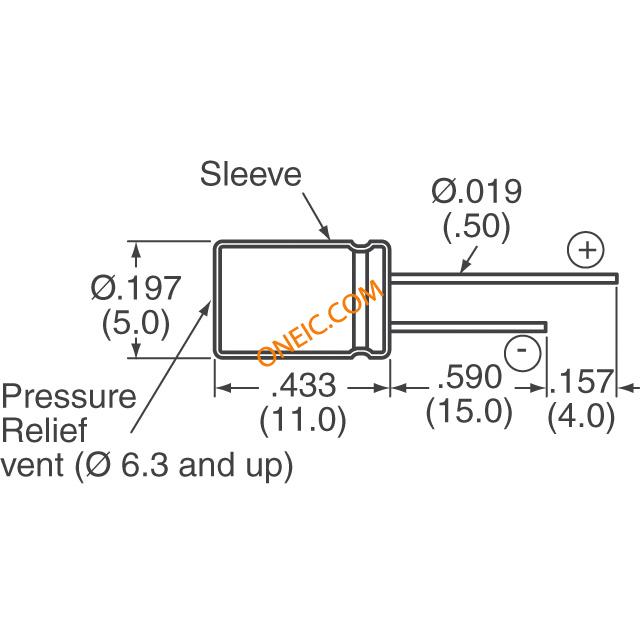

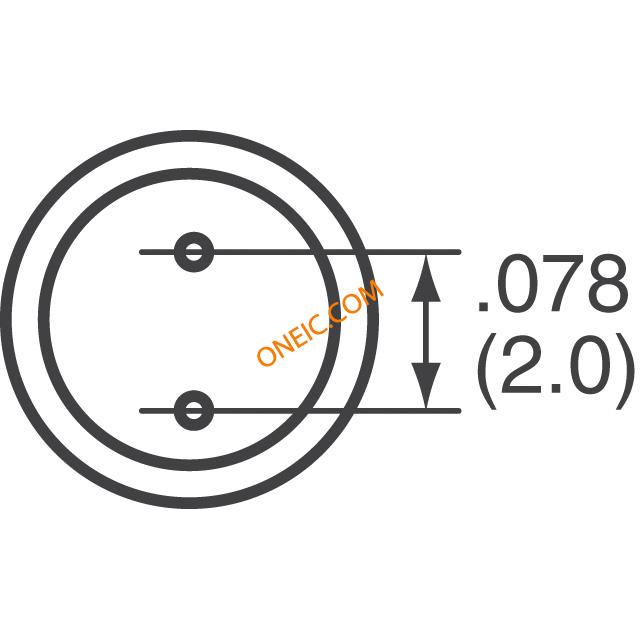

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Aluminum Electrolytic Capacitors - Leaded |
| RoHS | RoHS Compliant |
| Capacitance | 10 uF |
| Tolerance | 20 % |
| Voltage Rating | 50 V |
| Operating Temperature Range | - 55 C to + 105 C |
| Termination Style | Radial |
| Case Diameter | 5 mm |
| Case Length | 11 mm |
| Lead Spacing | 2 mm |
| Product | Low Impedance Electrolytic Capacitors |
| Packaging | Bulk |
| Dissipation Factor DF | 0.1 |
| Leakage Current | 15 uA |
| Load Life | 2000 hr |
| Ripple Current | 120 mA |
| Series | PW |
| Factory Pack Quantity | 200 |
| Lead Diameter | 0.5 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 105 |
| Leakage Current | 4@1Min |
| Mounting | Through Hole |
| Lifetime | 2000 |
| Product Height | 11 |
| Capacitance Value | 10uF |
| Lead Pitch For Radial | 2 |
| Voltage | 50VDC |
| Ripple Current | 120 |
| Type | Electrolytic |
| Product Diameter | 5 |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 5 mm Dia. x 11 mm L |
| Operating Temp Range | -55C to 105C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Lead Diameter (nom) | 0.5 mm |
| Construction | Radial |
| Tolerance (+ or -) | 20% |
| DCL | 4@1Min uA |
| Lead Spacing (nom) | 2 mm |
| Mounting Style | Through Hole |
| Lifetime | 2000 hr |
| Product Length (mm) | Not Required mm |
| Product Depth (mm) | Not Required mm |
| Product Height (mm) | 11 mm |
| Size (mm) | 5 X 11 |
| Product Diameter (mm) | 5 mm |
| CaseSize | 5mmDia.x11mmL |
| LeadSpacing | 5mm |
| Material,Element | AluminumElectrolytic |
| Termination | Radial |
| Voltage,Rating | 50VDC |
| 引線節距 | 2mm |
| 系列 | PW |
| 電壓 | 50 V 直流 |
| 容差 | ±20% |
| 最高工作溫度 | +105°C |
| 容差 正 | +20% |
| 端子類型 | 通孔安裝 |
| 高度 | 11mm |
| 電容值 | 10 μF |
| 最低工作溫度 | -55°C |
| 技術 | 電解 |
| 泄漏電流 | 4 μA |
| 壽命時間 | 2000h |
| 尺寸 | 5 (Dia.) x 11mm |
| 容差 負 | -20% |
| Board Level Components | Y |
| 直徑 | 5mm |
| 紋波電流 | 120mA |
| 引線直徑 | 0.5mm |
| 結構 | 徑向 |
