UPW1H100MDD1TD
Aluminum Electrolytic Capacitors - Leaded 10UF 50V 105c
廠商型號:
UPW1H100MDD1TD
芯天下內部編號:
244-UPW1H100MDD1TD
生產廠商:
Nichicon
描述:
Aluminum Electrolytic Capacitors - Leaded 10UF 50V 105c
產品類別:
Passive Components|Capacitors|Aluminum Electrolytic Capacitors|Aluminum Electrolytic Capacitors - Leaded

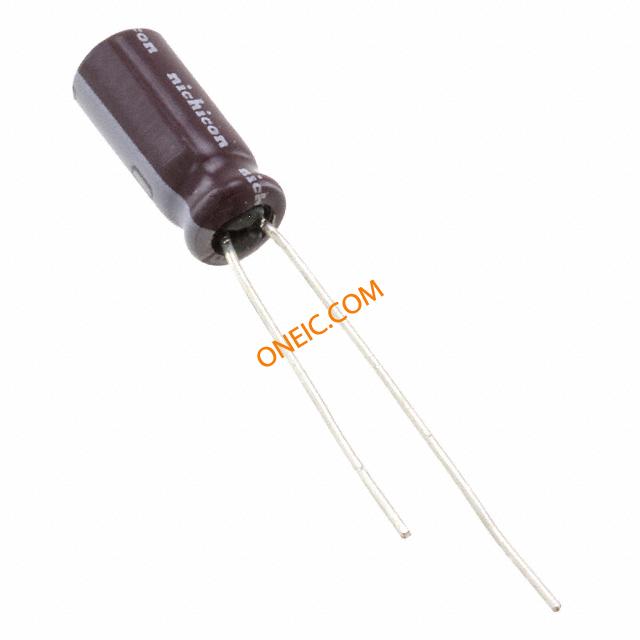

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Aluminum Electrolytic Capacitors - Leaded |
| RoHS | RoHS Compliant |
| Capacitance | 10 uF |
| Tolerance | 20 % |
| Voltage Rating | 50 V |
| Operating Temperature Range | - 55 C to + 105 C |
| Termination Style | Radial |
| Case Diameter | 5 mm |
| Case Length | 11 mm |
| Lead Spacing | 2 mm |
| Product | Low Impedance Electrolytic Capacitors |
| Packaging | Ammo Pack |
| Dissipation Factor DF | 0.1 |
| Load Life | 2000 hr |
| Ripple Current | 120 mA |
| Series | PW |
| Lead Diameter | 0.5 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 105 |
| Leakage Current | 15@1Min|5@2Min |
| Mounting | Through Hole |
| Lifetime | 1000 |
| Product Height | 11.5 |
| Capacitance Value | 10uF |
| Construction | Aluminum Cylindrical Can |
| Lead Pitch For Radial | 2 |
| Voltage | 50VDC |
| Ripple Current | 46 |
| Type | Electrolytic |
| Product Diameter | 8 |
| rohs | Lead free / RoHS Compliant |
| Dimensions | 5 mm Dia. x 11 mm L |
| Operating Temp Range | -55C to 105C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Lead Diameter (nom) | 0.5 mm |
| Tolerance (+ or -) | 20% |
| Lead Spacing (nom) | 2 mm |
| Mounting Style | Through Hole |
| Lifetime | 1000 hr |
| Size (mm) | 5 X 11 |
| Product Length (mm) | Not Required mm |
| Product Depth (mm) | Not Required mm |
| Product Height (mm) | 11.5 mm |
| Product Diameter (mm) | 8 mm |
| Product Range | :NICHICON - PW Series |
| Capacitance Tolerance | :± 20% |
| Diameter | :5mm |
| ESR | :5ohm |
| Height | :11mm |
| Capacitor Terminals | :Radial Leaded |
| Weight (kg) | 0 |
| Tariff No. | 85322200 |
| No. of Pins | :2 |
